Model
|
DSP-6Q
|
DSP-10Q
|
DSP-18Q
|
DSP-20Q
|
DSP-22000Q
|
|
channels
|
4
|
4
|
4
|
4
|
4
|
|
8 ohm Stereo Power(RMS)
|
700W
|
1300W
|
1800w
|
2200w
|
2500W
|
|
4 ohm Stereo Power (RMS)
|
1300W
|
2100w
|
3000W
|
4000W
|
4650W
|
|
8 ohm Bridged Power (RMS)
|
2500WX2
|
4200WX2
|
6000W
|
8000WX2
|
9500WX2
|
|
4 ohm Bridged Power (RMS)
|
3000WX2
|
5000WX2
|
9000W
|
9000WX2
|
23750WX2
|
|
Frequenty Response
|
20Hz-20kHz ±0.5dB
|
||||
|
THD+N(Rated power,4Ω/KHz)%
|
0.10%
|
||||
|
Signal Noise Ration(dB)
|
110dB
|
||||
|
Input Impedance
|
20KΩ Balanced / 10kΩ Unbalanced
|
||||
|
Output Connectors
|
Speak on Connectors
|
||||
|
Power Requirement
|
110-120V / 50-60Hz or 200-240V / 50-60Hz
|
||||

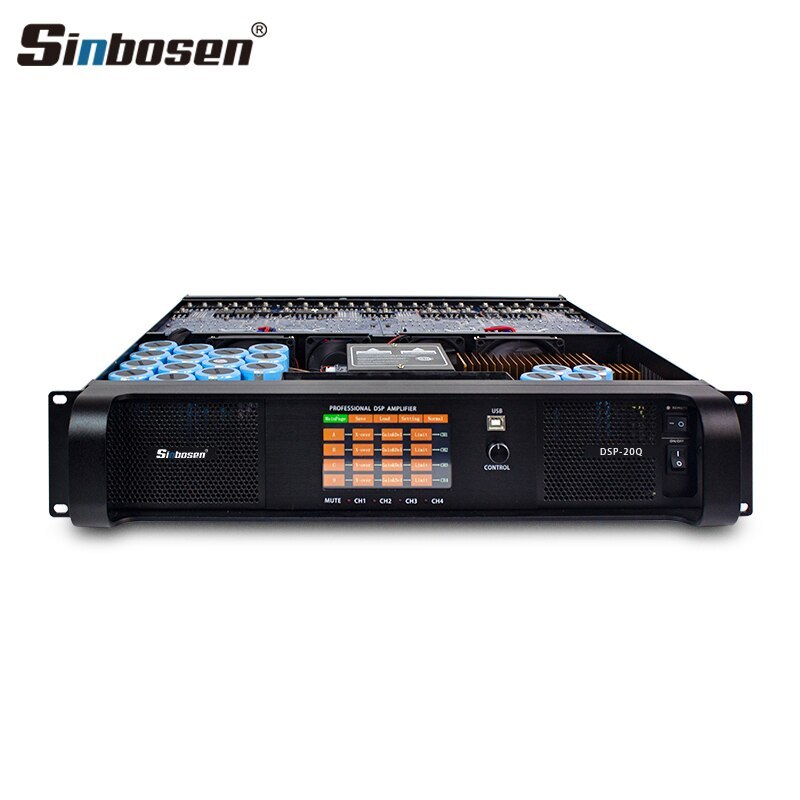

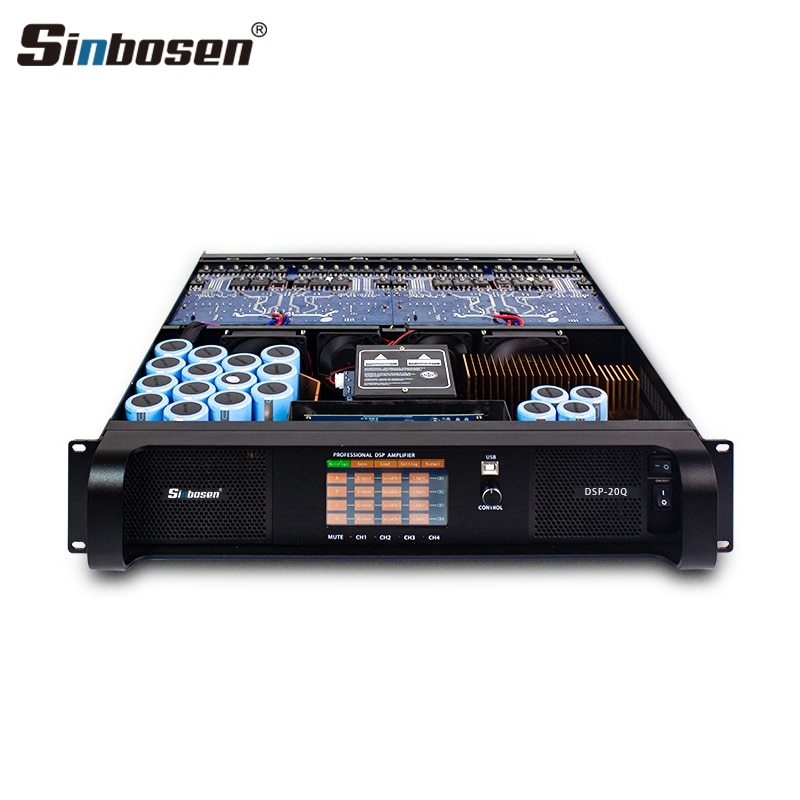

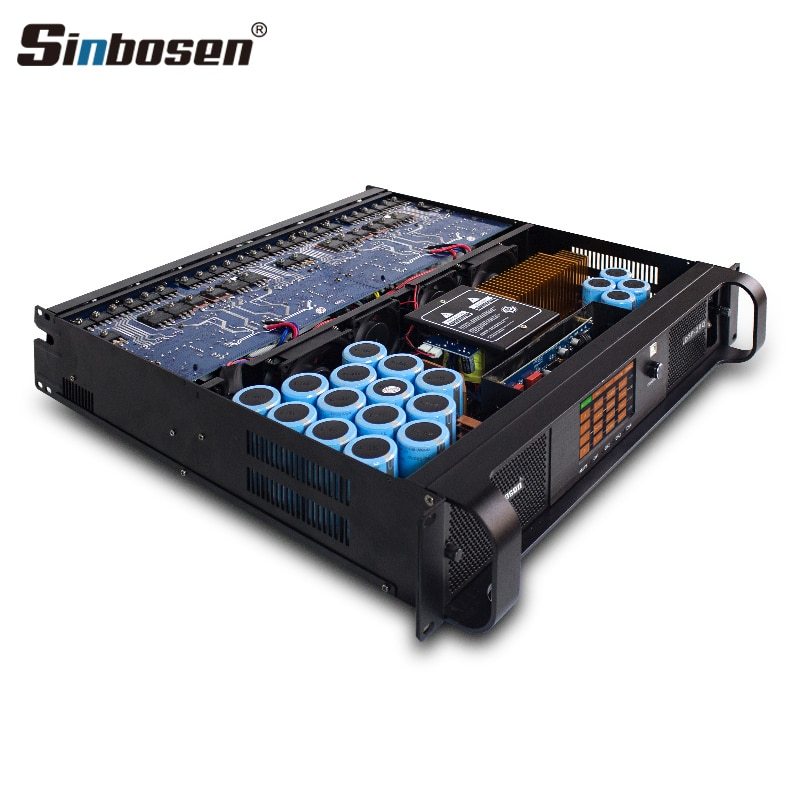

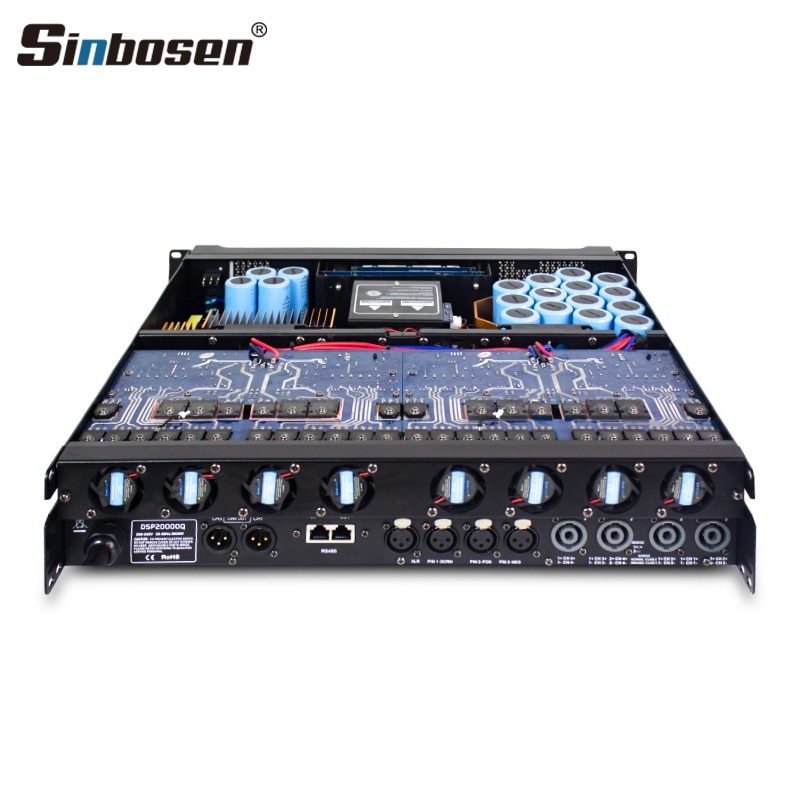

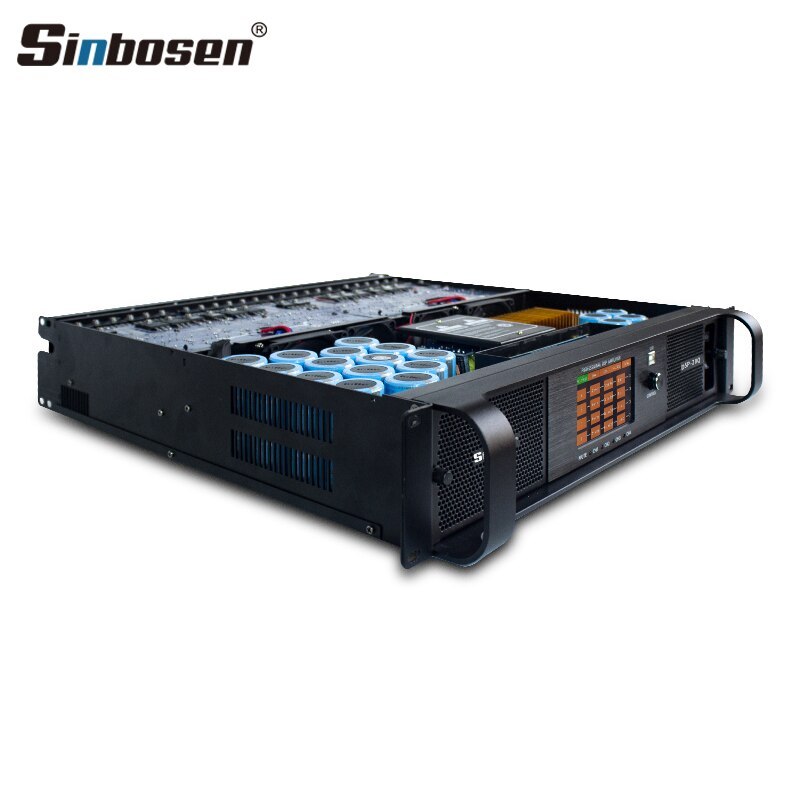

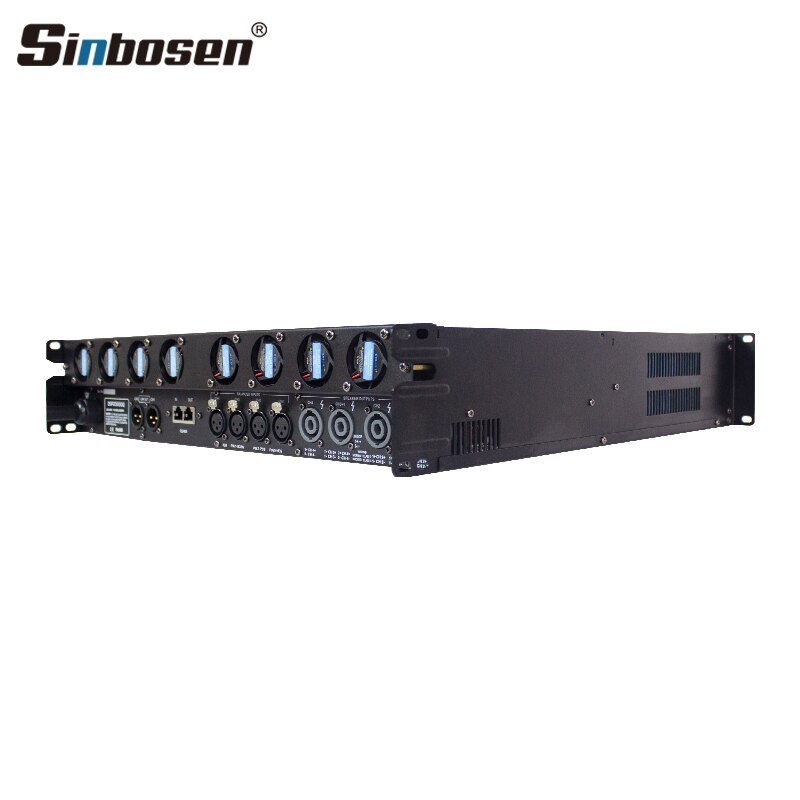

Sinbosen DSP Professional Power Amplifier Audio DSP20000Q 2000watt 4 Channels
4 Channel Class TD digital power amplifier.
4 x 2,200 Watts into 4 Ohms,4 x 4,000 Watts into 8 Ohms.
Creat SUPER sound quality.

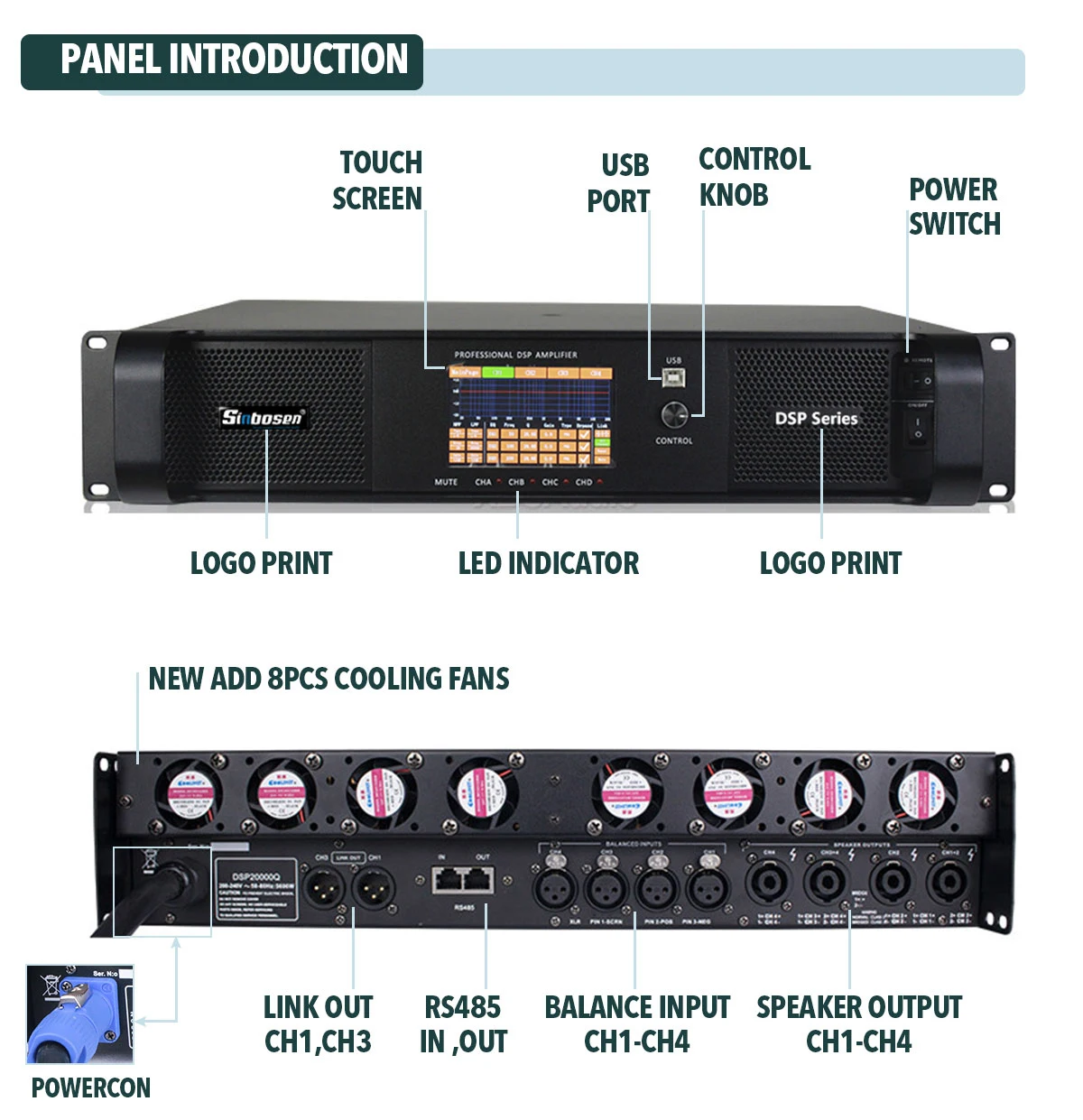

Control the sound effect by Touch on front 4" LED display screen.
Or control the sound effect by Computer.
Simple DSP software,no need install,easy operate it.
Bridge-mode operation for Touring Applications.
Comprehensive protection scheme.
Upgrade high-quality capacitor 3300uf 200V to 3600uf 200V
Use Original transistor.High quality connectors.

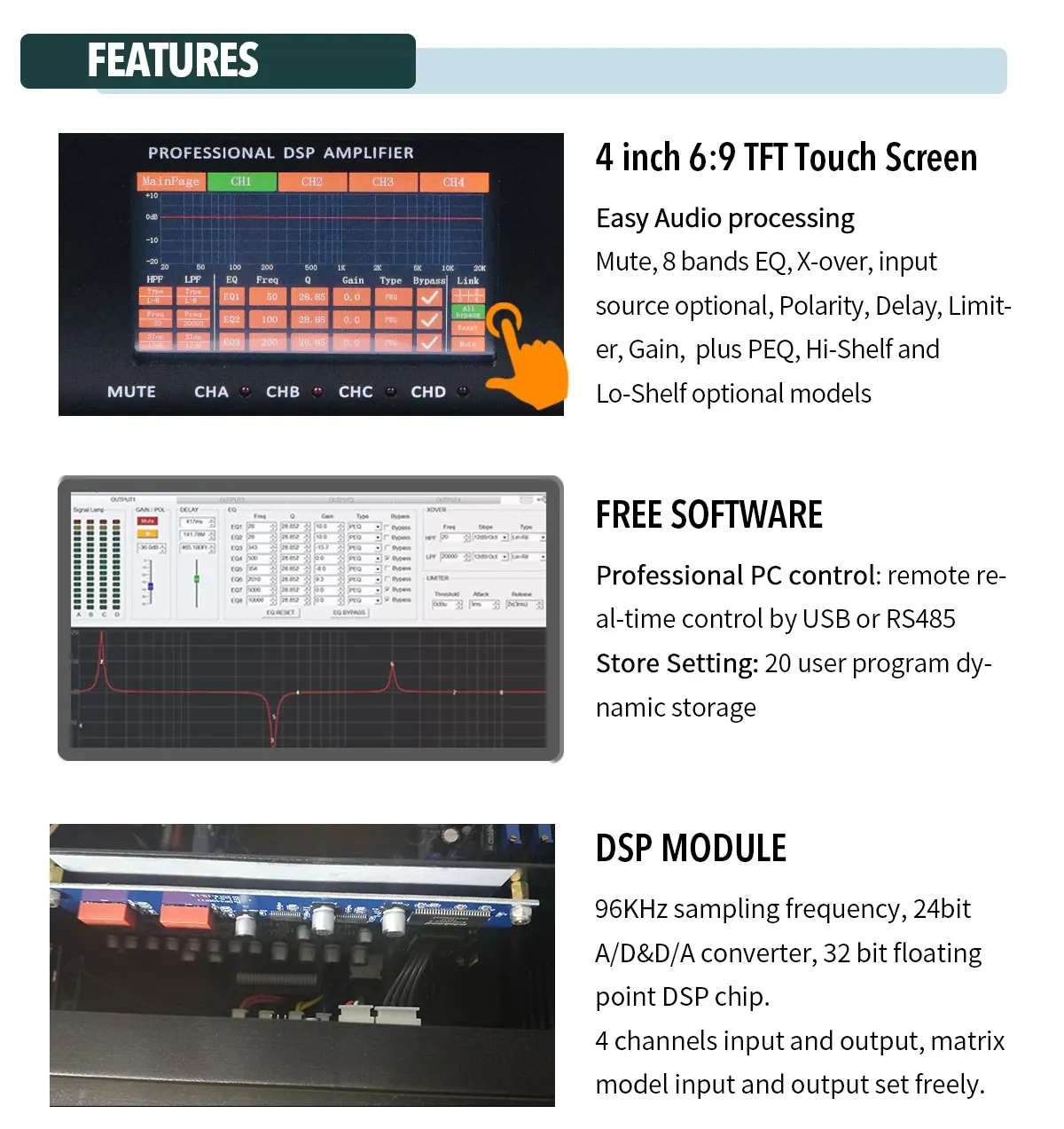

Feature
Touch screen
Amplifier built-in processor,4 inch size led screen can touch,control the amplifier sound effect.
Software control
DSP amplifier also cintrol by PC,through software can more precise adjustment dsp processor.
Multiple power amplifier controls
One PC can independent control serveral dsp amplifier at the same time.
|
Advantage |
||
|
Touch screen |
Software control |
Multiple power amplifier controls |
|
Amplifier built-in processor,4 inch size led screen can touch,control the amplifier sound effect. |
DSP amplifier also cintrol by PC,through software can more precise adjustment dsp processor. |
One PC can independent control serveral dsp amplifier at the same time. |
