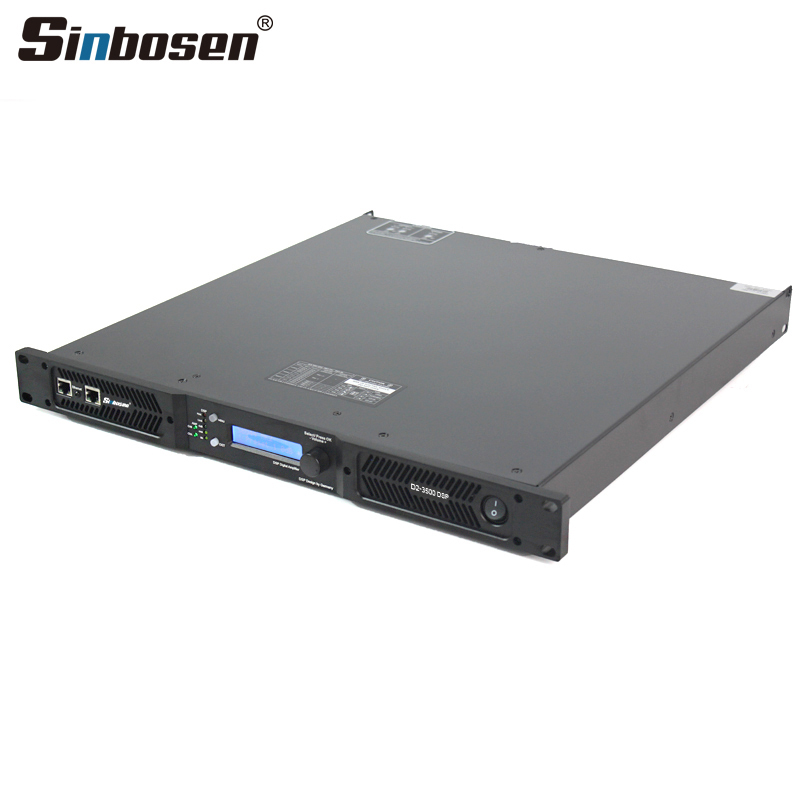

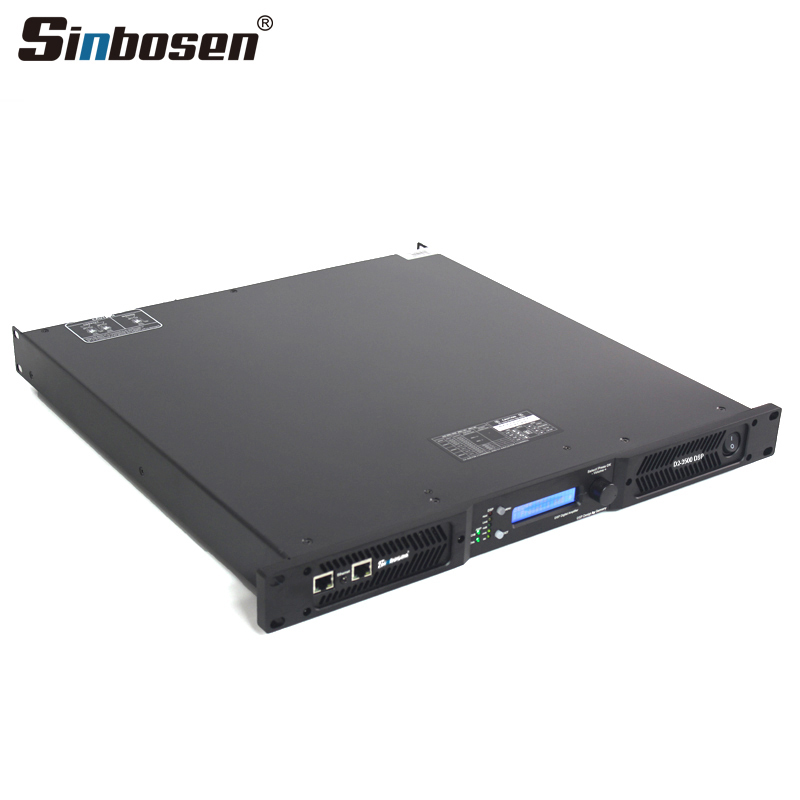

D2-3500 DSP DIGITAL AMPLIFIER FEATURE: ►High Quality Nippon Chemi-Con/Nichicon capacitors from Janpan ►Advanced GaN Transistors,Lower heat generation,Low noise,low distortion ►Stable at 2 ohms long-term load ►Active PFC,soft-switching for high adaptability ►Wide voltage range of 90V-270V for harsh environments ►Efficiency,energy conservation, environmental protection ►Standby sleep mode,power-saving and durable ►Damp Factor >5000 @20-200Hz,groundshaking super bass ►D2-3500 is ideal for subwoofer speaker! |

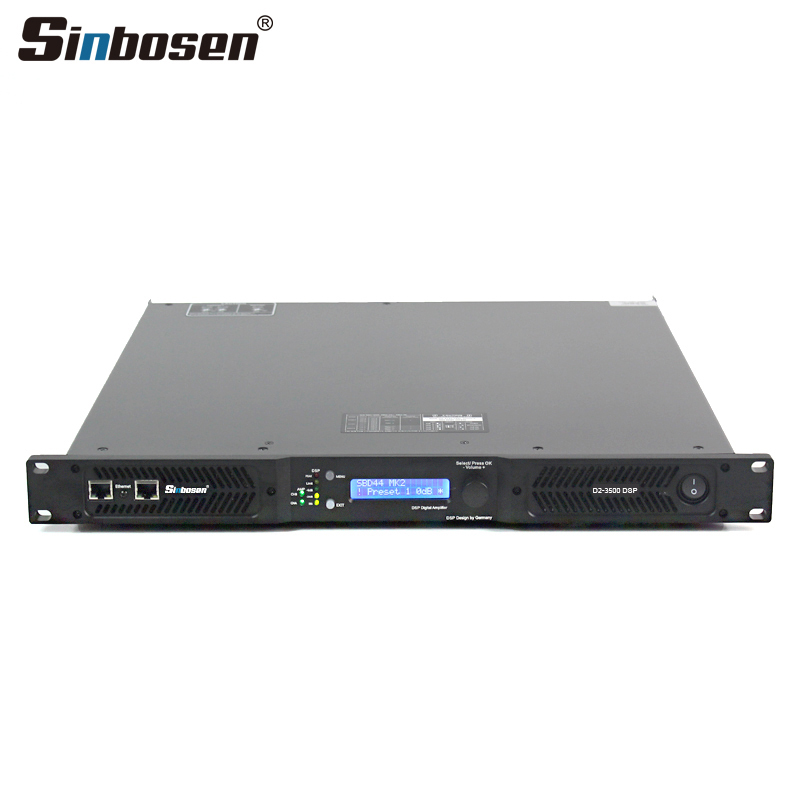

FRONT PANEL FEATURE

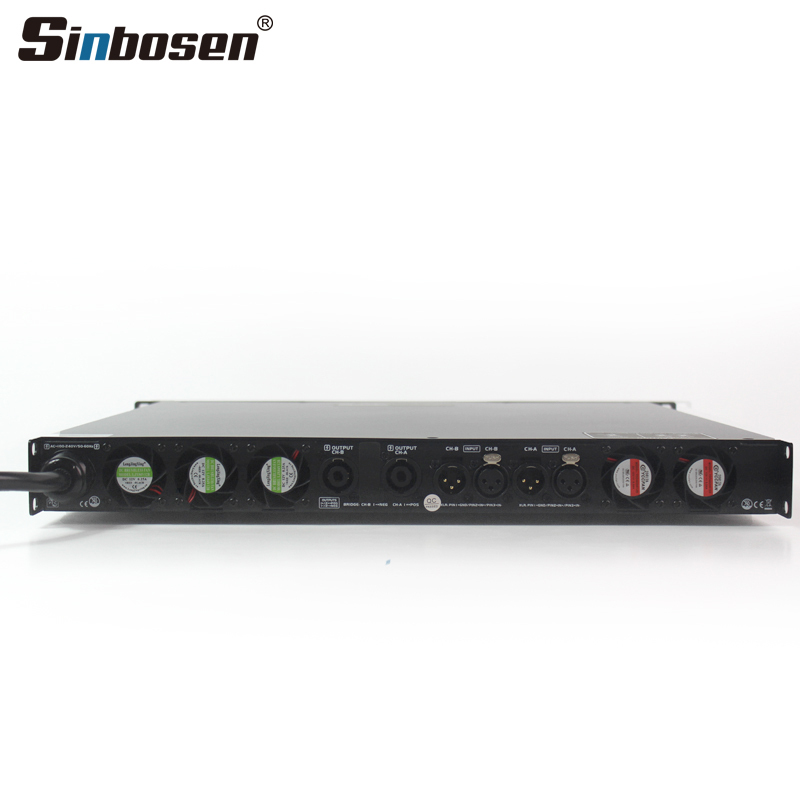

REAR PANEL FEATURE
Dimensions and Cooling system
NOTE:
The size is 437mm inside of the device(without the cover plate and front panel). The size is around 472mm of the complete device, but a little bit different size in the different front panels. Some series with different sizes have not been shown, please learn it in the parameter. Tunnel through cooling system Cold air comes in from the front panel of the equipment, and forms a duct through the radiator to take the heat away and out from the rear panel of the equipment. |
ALLDSP ALLControl The new D series digital amplifier also has the option to add a DSP function, Our D series DSP amplifier uses ALLDSP system from Germany. It is suited for Windows, Mac, and ios systems. The application for iPad or iPhone can be downloaded and installed from the Apple Store. For the Remote Operation Software (Windows and Mac) and Manual, Please check the Download link or contact us! Note that for a Windows computer, there are separate applications for Windows 32-bit and 64-bit. Attention: You cannot connect the unit to the network through the USB or Ethernet at the same time. You can only control the unit from one platform at the same time if you switch from one platform to another, you MUST shut down the control software at the previous platform first. Local connectivity of the device to the control computer from a front-panel USB connector is also possible to download initial settings or as a fallback in case of network failure. |
►Unit Window: Main Panel
Unit window shows the unit window from which all setup screens and options can be reached.Clicking the exit cross will close the software but leave the network Control program running.
►Input Channel Settings Screen
Clicking on an Input channel number in the Unit window will bring up the input channel settings screen see Figure above. In this screen, individual input channels can be equalized and/or filtered.
Settings screen:
●Filtering and EQ
●Input channel transfer function curve ●Screen expansion and legends ●Input Gain, Mute ●Delay, limiter, compressor ●RMS compressor |
●Screen expansion and legends |
●Delay, limiter, compressor |
●Compressor settings window |
►Crossover Settings Window
When you click X-over in the left unit window function list, most of the screen is dedicated to the controls and indicators for setting up the cross over filters as shown in Figure.
Settings screen:
●Graphical control
●Filter type ●Gain ●Delay ●Link ●Mute, Phase Invert |
►Output Channel Settings Screen
As shown in the picture above, faders are shown for each of the input channels. This will allow mixing each of the input signals to each individual Output channel. Even if Input channels are set to Linked in the Unit window, it is still possible here to mix individual Input channels to an Output channel in any desired ratio. Level setting are shown numerically below each fader. The available range is from -48 dB to 0 dB. As in other screen, double clicking a fader resets it to default. A complete control screen is available for each Output channel. The graphical area reflects the Crossover settings for the channel in addition to any equalization settings set up in this screen, and is very similar to the available settings in the individual Input channel screens.The status of an element is always reflected in the blue on/off button next to each element. |
Settings screen:
●Relationship between Input- and Output settings
●Output filtering and EQ ●Output channel transfer curve ●Delay, limiter, compressor ●RMS compressor ●Change / adjusting Values |
|
