D4-2000 DIGITAL AMPLIFIER FEATURE:
►4 x 4760W into 2ohms,4 x 3400W into 4ohms,4 x 2000W into 8ohms
►High Quality Nippon Chemi-Con/Nichicon capacitors from Janpan
►Gallium Nitride Transistors,Stable at 2 ohms long-term load
►Active PFC,soft-switching for high adaptability
►Wide voltage range of 90V-270V for harsh environments
►Efficiency,energy conservation, environmental protection
►Standby sleep mode,power-saving and durable
►Damp Factor >5000 @20-200Hz,Powerful and profound low frequency
►D4-2000 ideal for line array,full range speaker.(Not recommended for subwoofer)

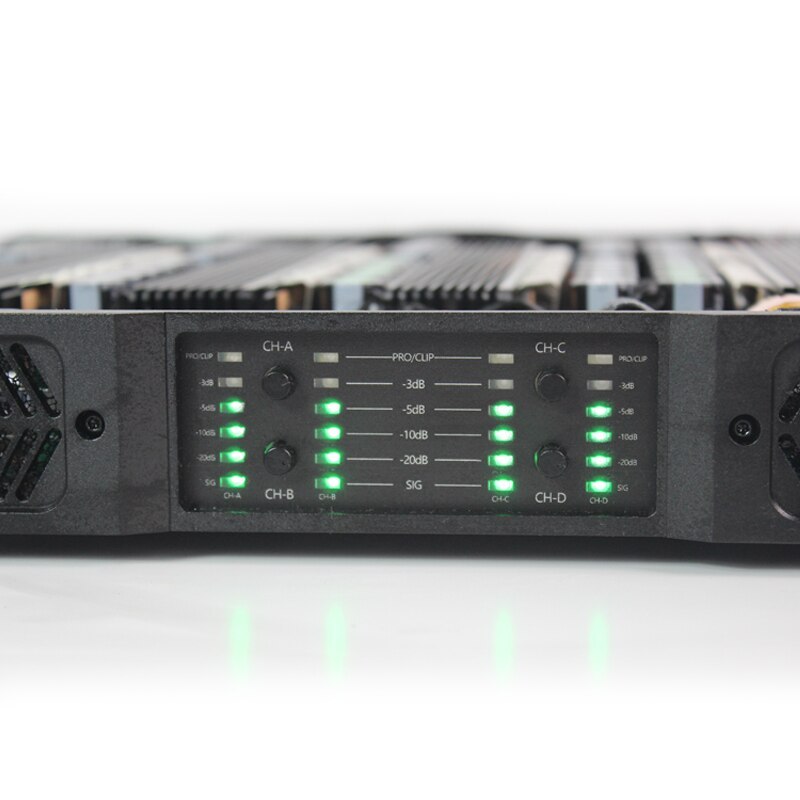

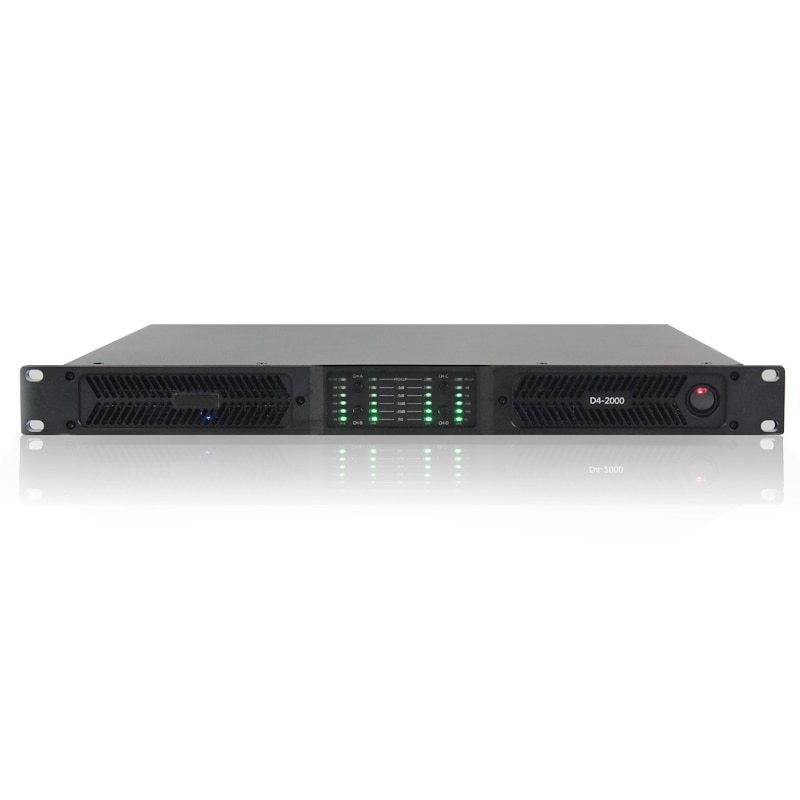

FRONT PANEL FEATURE

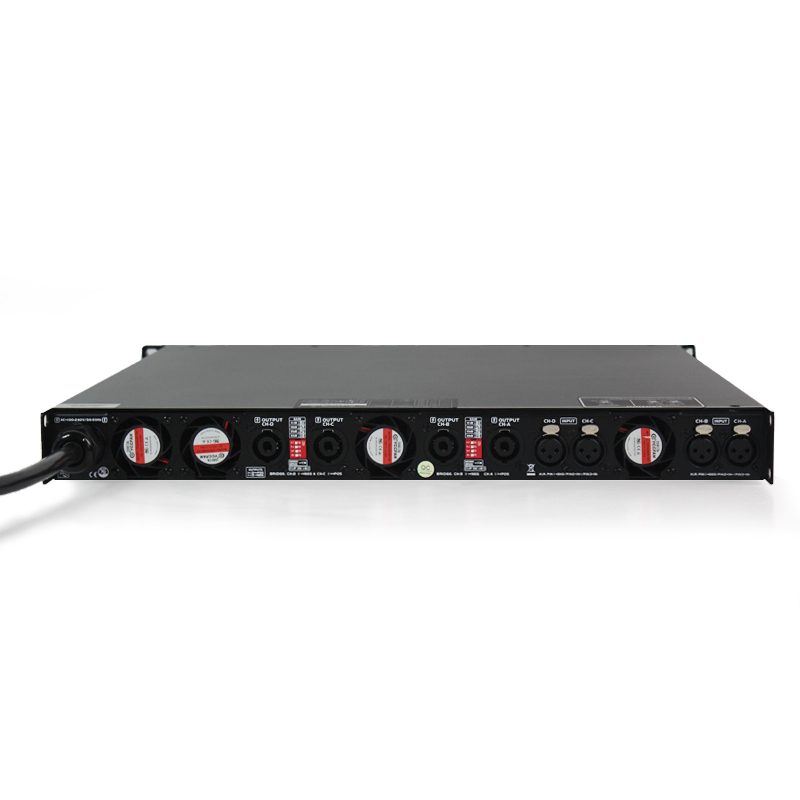

REAR PANEL FEATURE
Dimensions and Cooling system
NOTE: The size is 437mm inside of the device(without the cover plate and front panel).The size is around 472mm of the complete device,but a little bit different size in the different front panel.Some series with different size that had not shown,please learn it in the parameter.
Tunnel through cooling system Cold air comes in from the front panel of the equipment, forms a duct through the radiator to take the heat away and out from the rear panel of the equipment.
|
|
