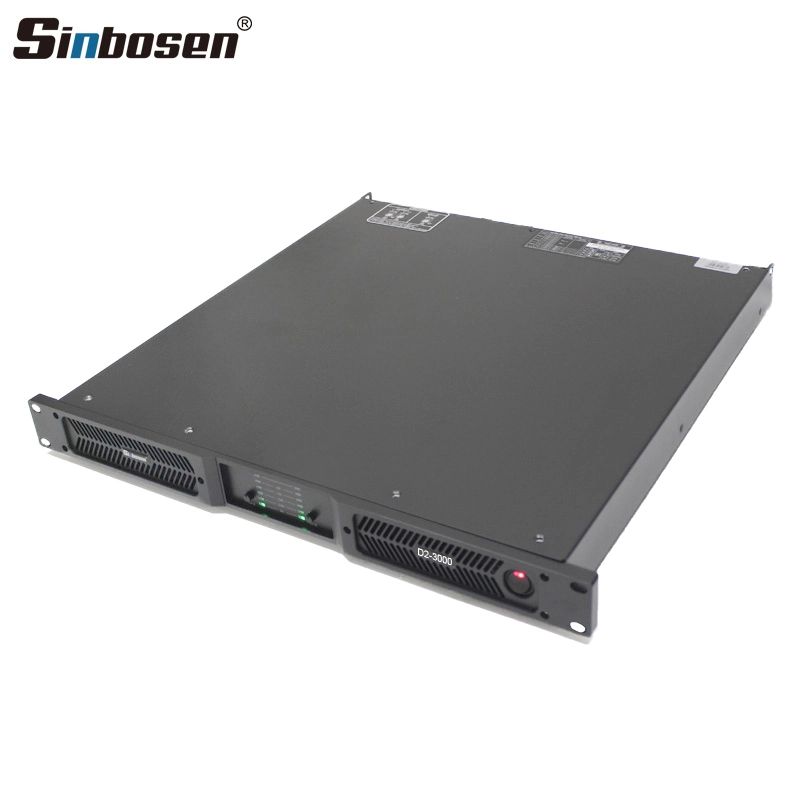

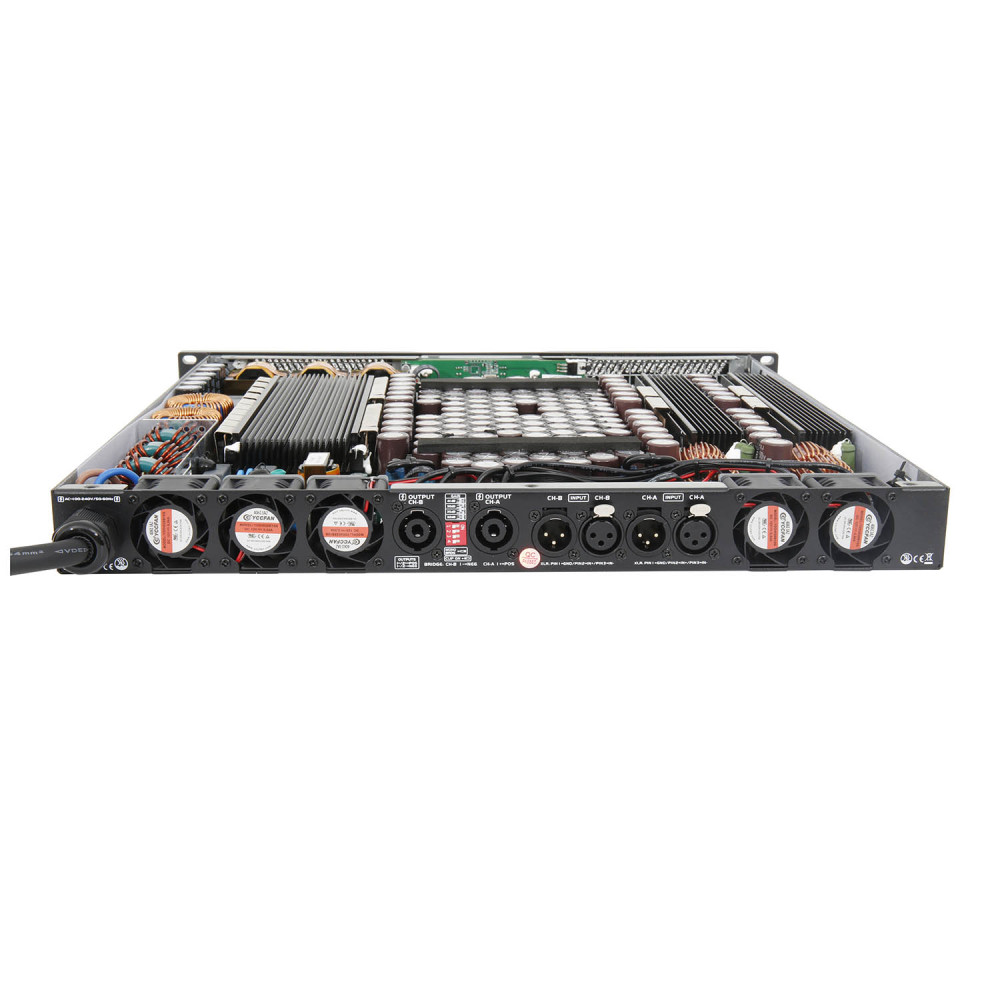

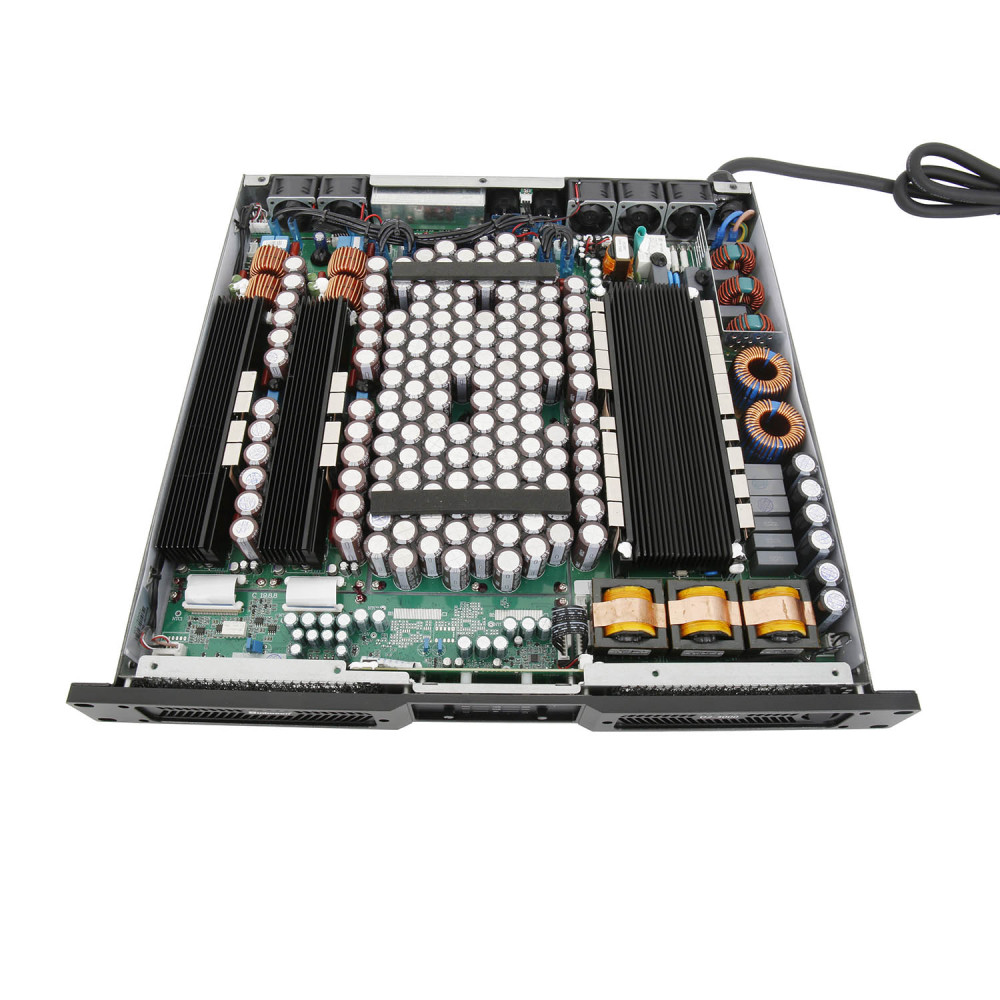

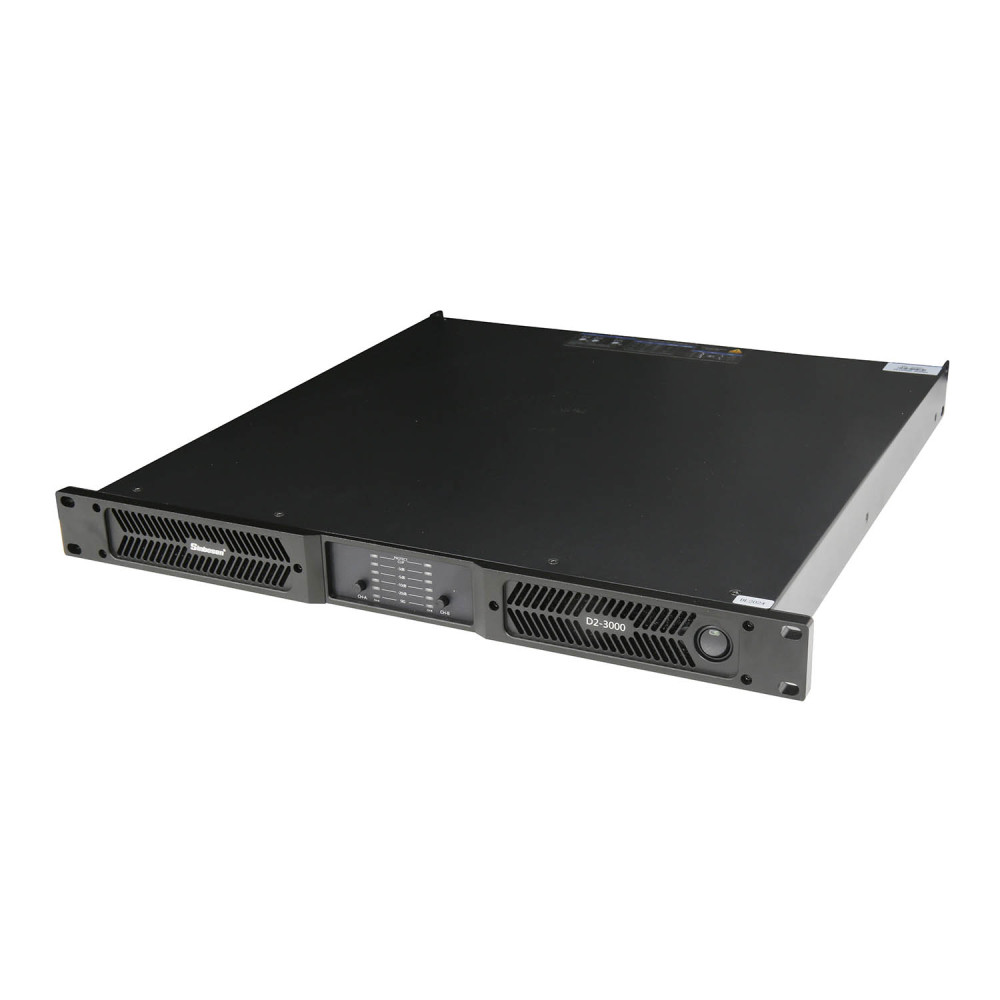

D2-3000 professional subwoofer digital compact high watt power amplifier

D SERIES HIGH POWER DIGITAL AMPLIFIER (DSP can be added)

Model

D2-3000

D2-3500

D2-4200

D4-2000

D4-3000

EIAJ Test Standard,1 kHz, 1% THD

8Ω/Stereo

2 x 3000W

2 x 3500W

2 x 4200W

4 x 2000W

4 x 3000W

4Ω/Stereo

2 x 5000W

2 x 6300W

2 x 7800W

4 x 3400W

4 x 5000W

2Ω/Stereo

2 x 7140W

2 x 7400W

2 x 8500W

4 x 4760W

4 x 6500W

8Ω/Bridge

1 x 10200W

1 x 12500W

1 x 15600W

2 x 6800W

2 x 10000W

4Ω/Bridge

1 x 14280W

1 x 14800W

1 x 17000W

2 x 9520W

2 x 13000W

 Alternating Current Power Supply

Power

PFC Power

Rated power demand

100-240V±10%, 50/60Hz

Operation voltage

90V-270V

Power correction factor cos(φ)

>0.95 @ >500W

Standby

47W and 0.8A

Gain,Sensitivity

32dB,35dB,38dB,41dB

Maximum Output Voltage/Current

185V/85A (370V in the BRIDGE MODE)

Power Comsumption

230V (115V in the BRIDGE MODE)

Temperature

Environment temperature

0°-45C / 32′-113*F

Cooling system

Tunnel through cooing system

Performance

Frequency Response

20Hz - 20kHz (1W@8Ω,+05 dB)

Signal-to-Noise Ratio

>110 dBA (20 Hz- 20 kHz A weighted)

Crosstalk

>66 dB @ 1 kHz

Input Impedance

10 kΩ balanced

Total Harmonic Distortion(THD)

<0.5% from 1 W to full power (Typitcal value<0.05%)

Intermodulation Distortion(IMD)

<0.5% from 1 W to full power (Typical value< 0.05%)

Damping Factor (8 ohms)

>5000 @ 20-200 Hz

Slew Rate

50V/μs @ 8Ω

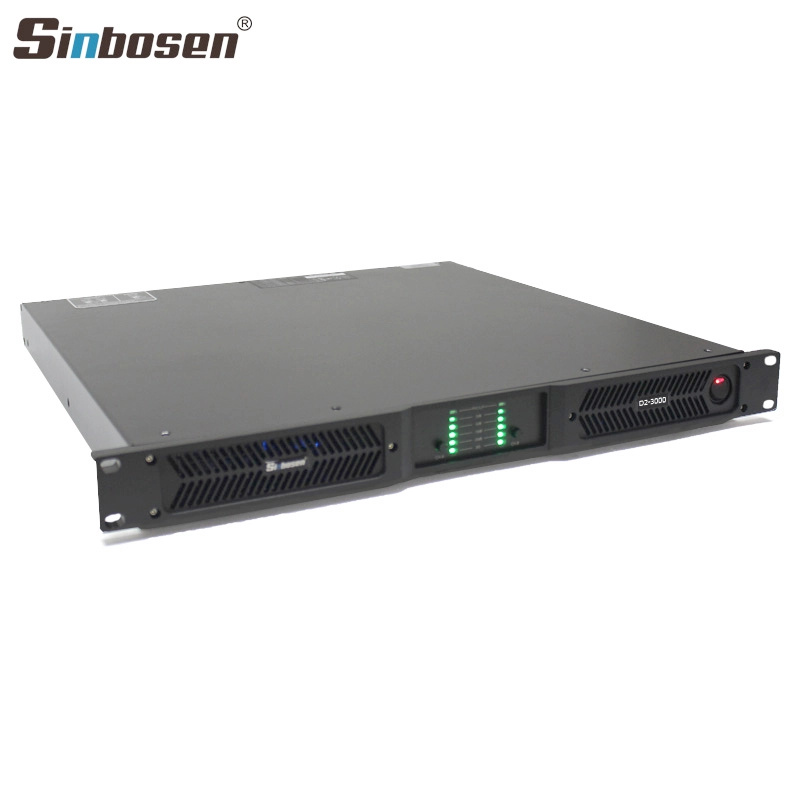

 Front Panel

Indicator LED/per channel

One PCS Green LED: the input signal of XLR ≥ -40dB;
Four pieces Green LED：
display the output signal(-20dB,-10dB,-5dB,-3dB)of SPEAKON
1 piece dual LED(Yellow and Red):
Protective state/Clip stste/Over heat/Over load

Power Switch

Press "I"-on; Press "O"-off.

Dust-proof

Two pieces dust-proof cotton,
it can take off to clean from the bottom of front pannel

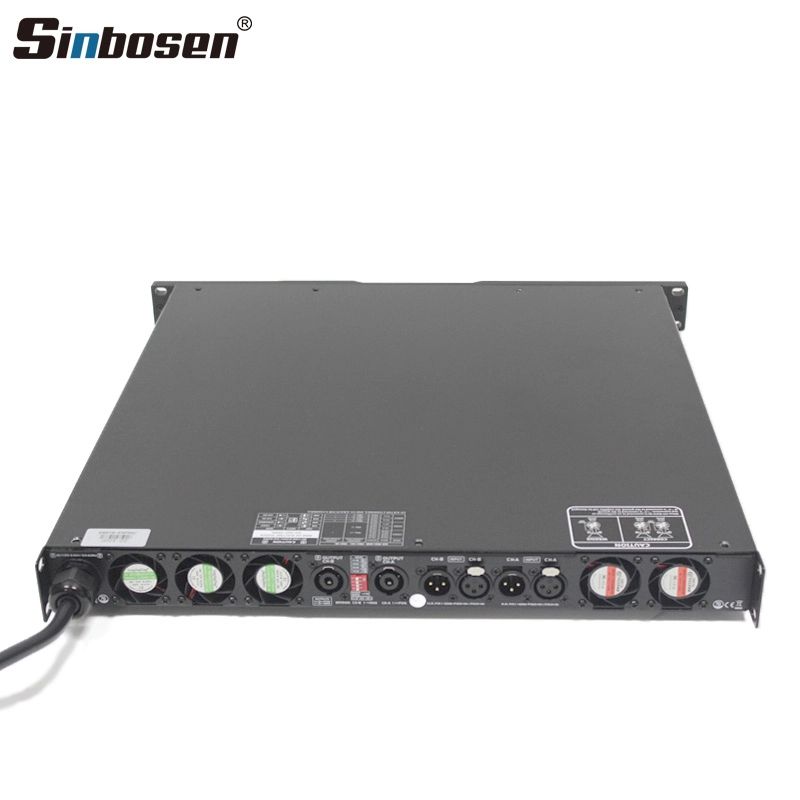

 Application

Signal in-connection

4 Channel: One balanced XLR(with lock)female per channel;
2 Channel One balanced XLR(with lock)female
and one balanced XLR male per channel.

Signal out-connection

One SPEAKON per channel connect to loudspeakers

Power cord

Fited to the device, and the CSA(cross sectional area)of the cord is 3 x 2.5mm²,
and the card is 1.5 meters long.

Multiple-Functions Switch

Two Sensitivity Switches. One Mode Switch and one Clip Switch.

 Structure(The size and weight depend on different series and shipping demand )

Dimensions

482 x 44 x 380mm³/482 x 44 x 470 mm³

Net weight

10Kg/12kg

Packing size

580 x 580 x 119mm³/615 x 615 x 119 mm³

Shipping weight

12Kg/14Kg
