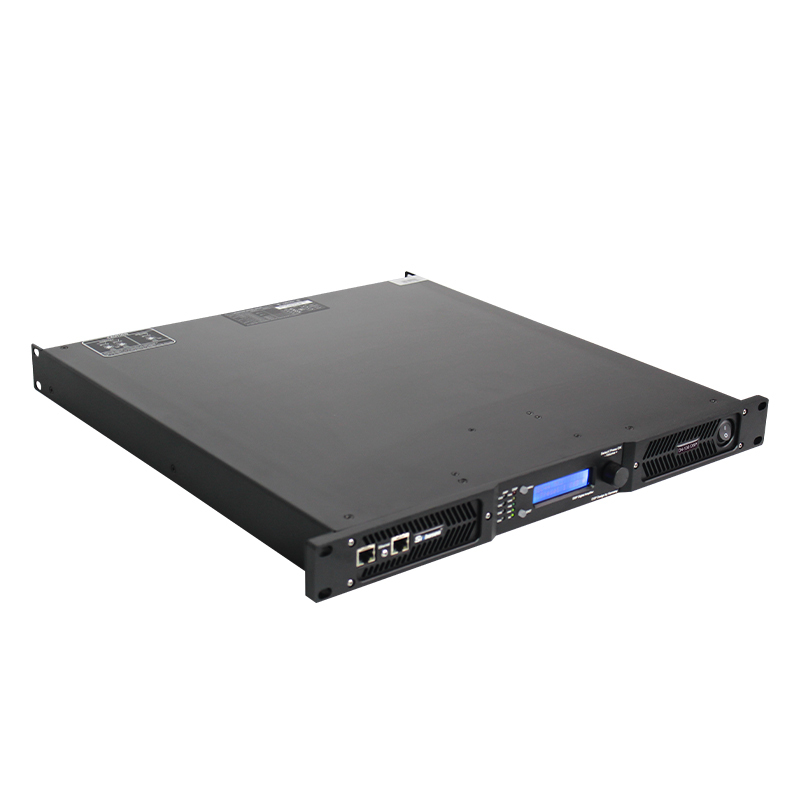

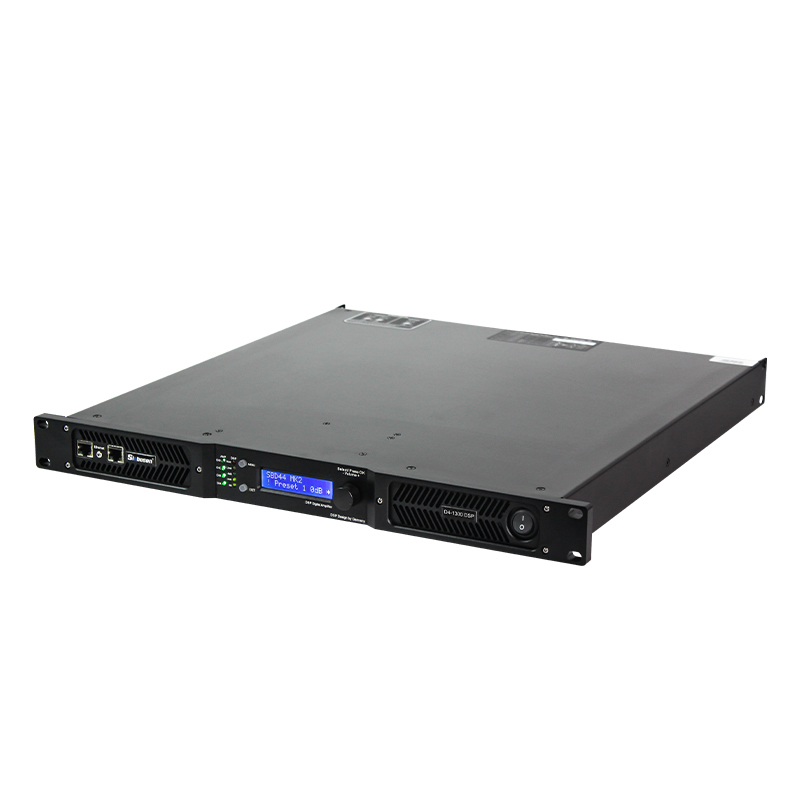

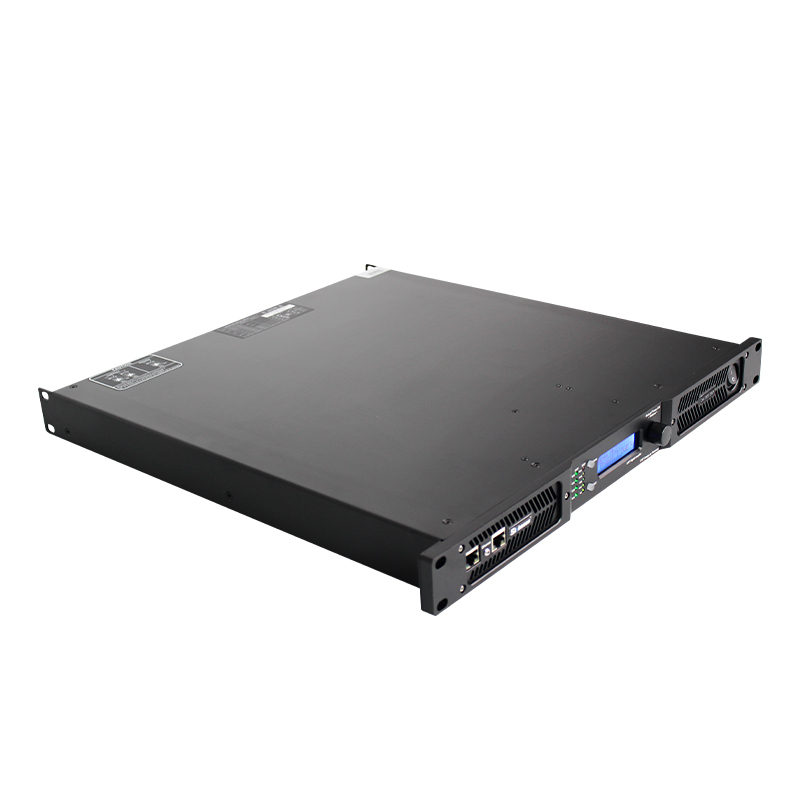

D4-1300 DSP 2Ω Stable Compact FIR Software Control Digital Amplifier

D-Series Digital Amplifier 4 channel

Model

EIAJ Test Standard,1 kHz, 1% THD

8Ω/Stereo

4Ω/Stereo

2Ω/Stereo

8Ω/Bridge

4Ω/Bridge

Power

PFC Power

Rated power demand

100-240V±10%, 50/60Hz

Operation voltage

90V-270V

Power correction factor cos(φ)

>0.95 @ >500W

Standby

47W and 0.8A

Gain,Sensitivity

32dB,35dB,38dB,41dB

Maximum Output Voltage/Current

185V/85A (370V in the BRIDGE MODE)

Power Comsumption

230V (115V in the BRIDGE MODE)

Temperature

Environment temperature

0°-45C / 32′-113*F

Cooling system

Tunnel through cooing system

Performance

Frequency Response

20Hz - 20kHz (1W@8Ω,+05 dB)

Signal-to-Noise Ratio

>110 dBA (20 Hz- 20 kHz A weighted)

Crosstalk

>66 dB @ 1 kHz

Input Impedance

10 kΩ balanced

Total Harmonic Distortion(THD)

<0.5% from 1 W to full power (Typitcal value<0.05%)

Intermodulation Distortion(IMD)

<0.5% from 1 W to full power (Typical value< 0.05%)

Damping Factor (8 ohms)

>5000 @ 20-200 Hz

Slew Rate

50V/μs @ 8Ω

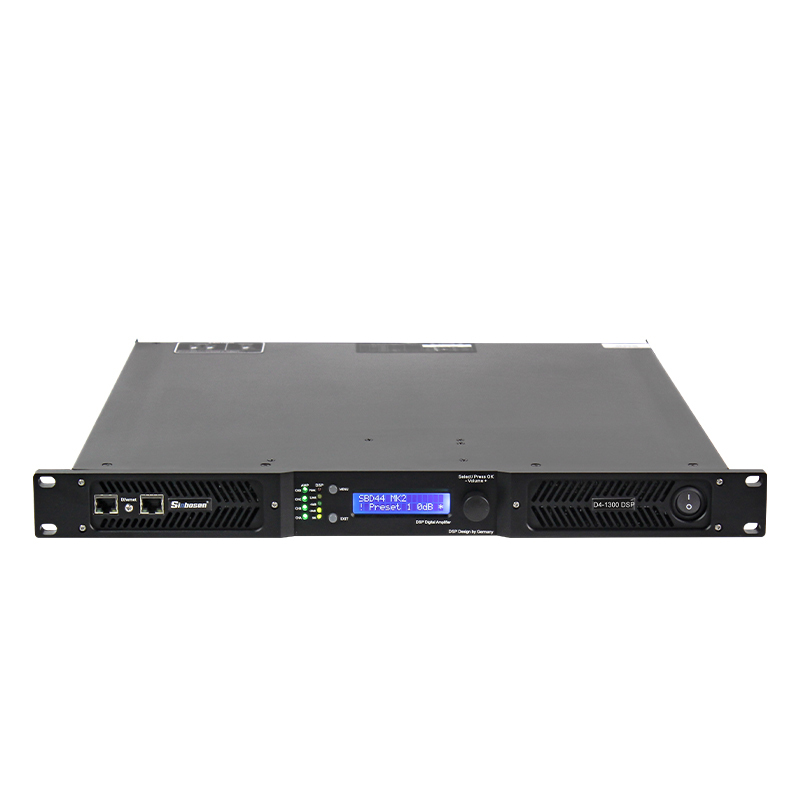

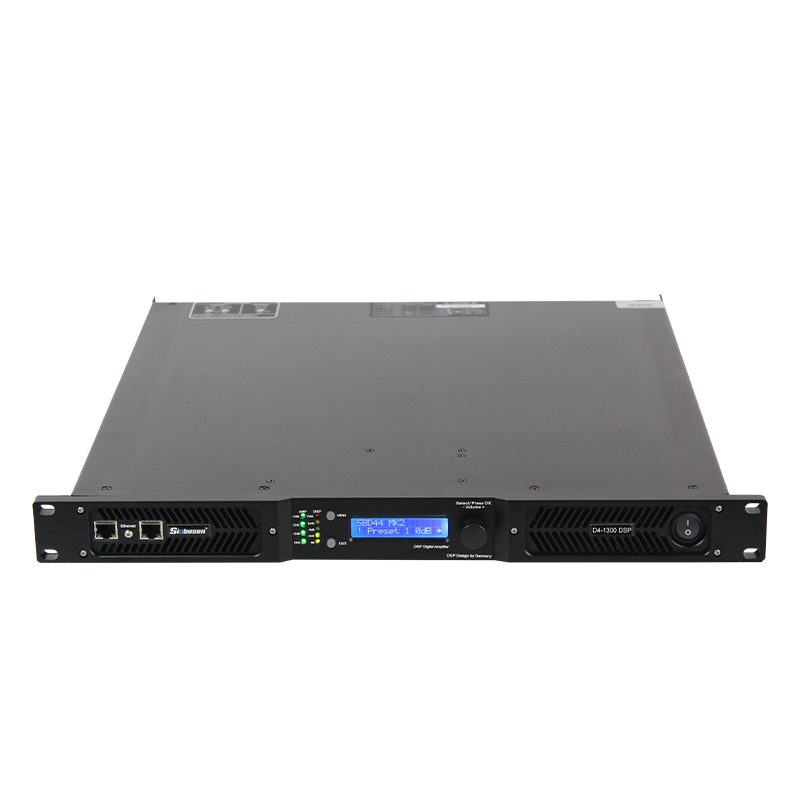

 Front Panel

Indicator LED/per channel

One PCS Green LED: the input signal of XLR ≥ -40dB;
Four pieces Green LED：
display the output signal(-20dB,-10dB,-5dB,-3dB)of SPEAKON
1 piece dual LED(Yellow and Red):
Protective state/Clip stste/Over heat/Over load

Power Switch

Press "I"-on; Press "O"-off.

Dust-proof

Two pieces dust-proof cotton,
it can take off to clean from the bottom of front pannel

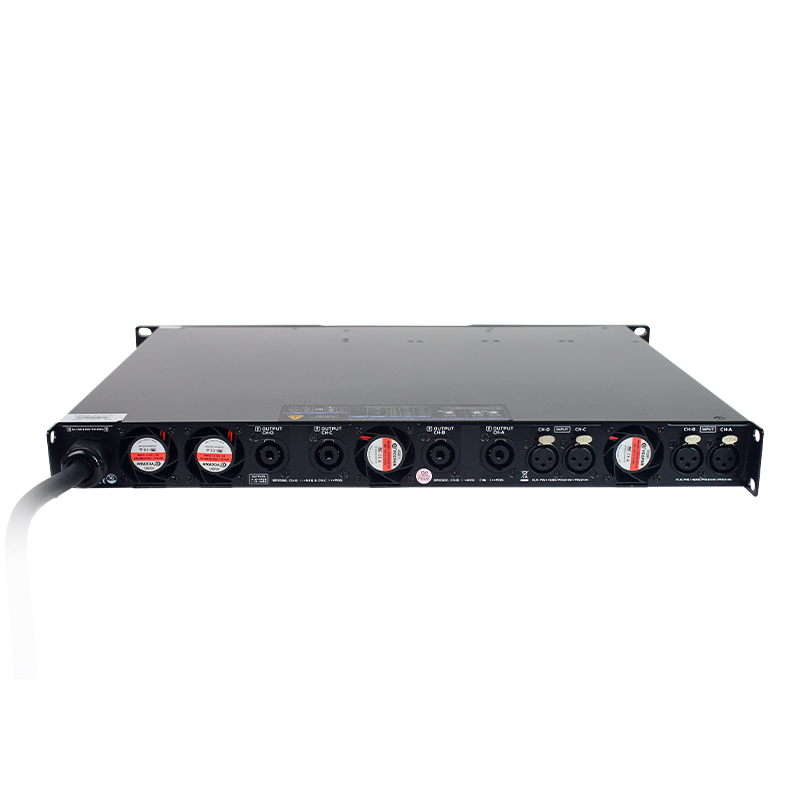

 Application

Signal in-connection

4 Channel: One balanced XLR(with lock)female per channel;
2 Channel One balanced XLR(with lock)female
and one balanced XLR male per channel.

Signal out-connection

One SPEAKON per channel connect to loudspeakers

Power cord

Fited to the device, and the CSA(cross sectional area)of the cord is 3 x 2.5mm²,
and the card is 1.5 meters long.

Multiple-Functions Switch

Two Sensitivity Switches. One Mode Switch and one Clip Switch.

 Structure(The size and weight depend on different series and shipping demand )

Dimensions

482 x 44 x 380mm³/482 x 44 x 470 mm³

Net weight

10Kg/12kg

Packing size

580 x 580 x 119mm³/615 x 615 x 119 mm³

Shipping weight

12Kg/14Kg

●Screen expansion and legends
On the left-hand side of the graphical screen are four icons to help precise settings. The top Arrow icon expands the graphical screen to the size of the window.Clicking this icon again from the expanded screen expands it to the full display size. In either of the expanded settings, clicking the X-icon at the top left will collapse the graphical area to the default setting.

The T(ext) icon will place the frequency, Q and gain values of each EQ and filter setting in the graphical screen.

For very accurate settings of EQ or filtering you can click the Looking Glass icon.

●Delay, limiter, compressor
Settings for channel delay, limiter (-48 to +24 dBu) and Limiter release rate (10 to 100 dB/s) settings.Plus a button to enter the rms compressor menus.Channel delay can be set in a variety of distance or time units from the drop-down list.

●Compressor settings window
Clicking on the compressor button brings up the compressor menu.
In the compressor menu you can set the parameters of the rms compressor.You can set the threshold, attack, hold, and release time, the compression ratio and the make-up gain.Next to the controls is a VU meter that also displays the gain reduction (GR). Be sure to use the ‘Back’ button to return to the output menu.
