| Model | LA8 | LA12X |
|---|---|---|
| 8 ohm Stereo Power(RMS) |
1450W *4CH
|
2200W *4CH
|
| 4 ohm Stereo Power (RMS) |
2200w *4CH
|
4000W *4CH
|
| Frequenty Response |
20Hz-20kHz ±0.5dB
|
|
| THD+N(Rated power,4Ω/KHz)% |
0.10%
|
|
| Signal Noise Ration(dB) |
110dB
|
|
| Input Impedance |
20KΩ Balanced / 10kΩ Unbalanced
|
|

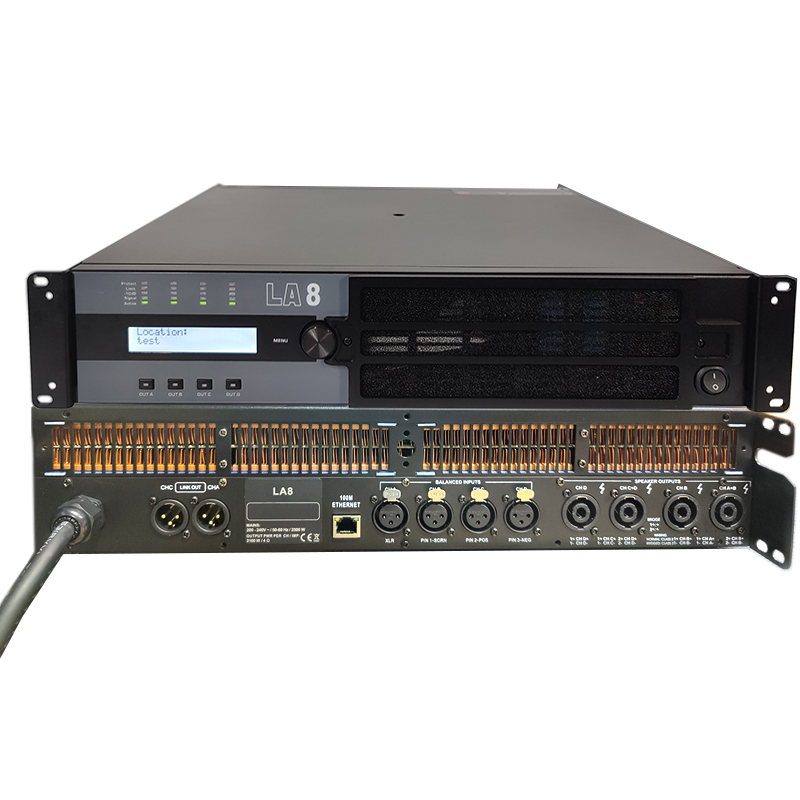

| Output Connectors |
Speak on Connectors
|
|
| Power Requirement |
110-120V / 50-60Hz or 200-240V / 50-60H
|
|
|

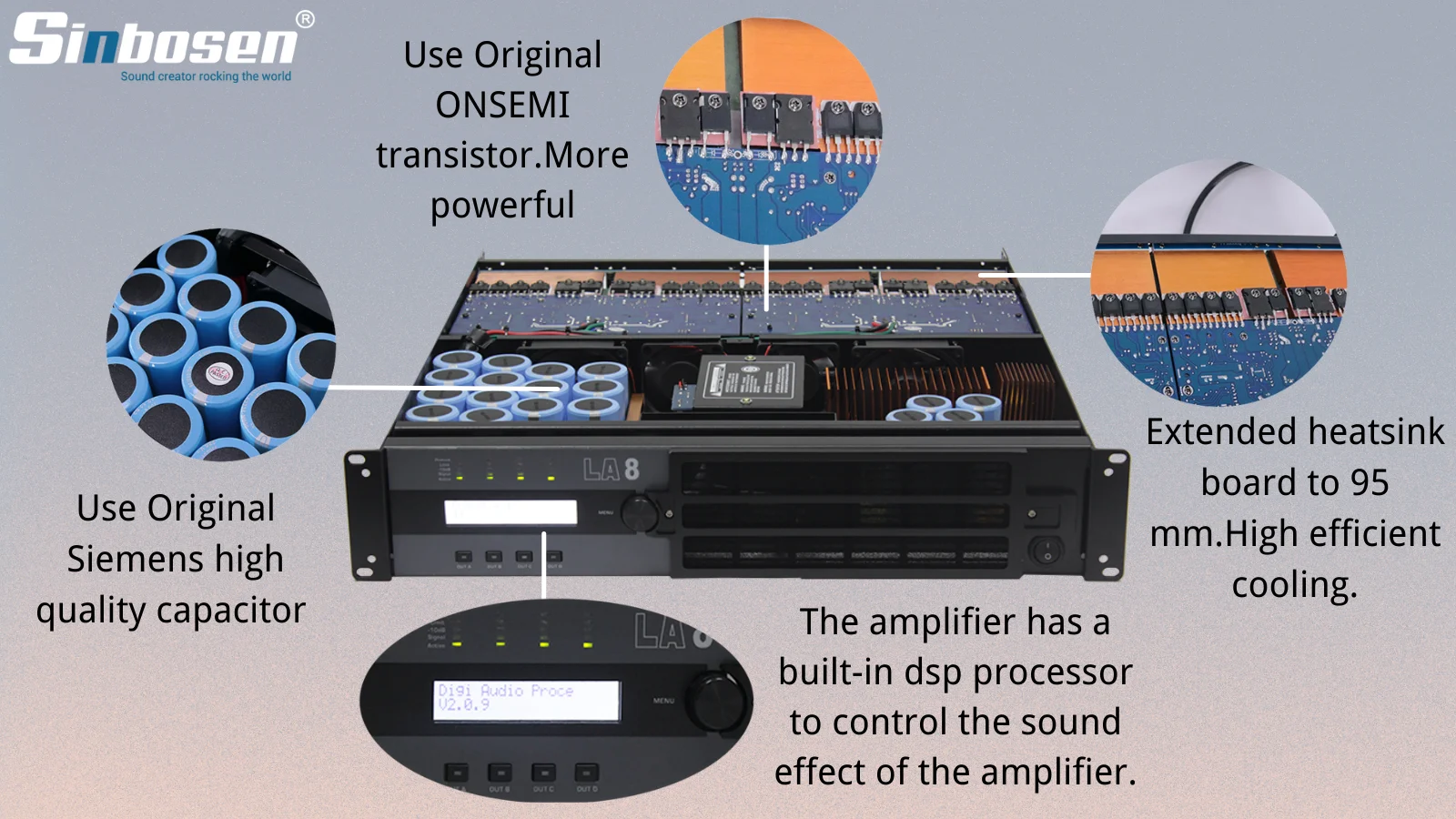

DSP CONTROL:

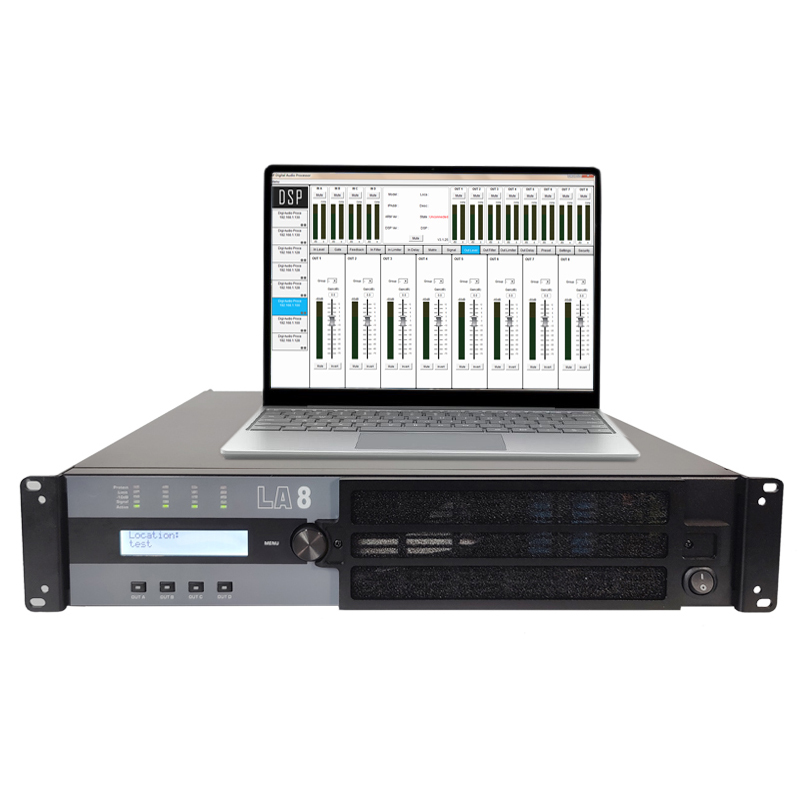

Connect the computer for DSP software operation, which is equivalent to the work of a processor.
DSP Function: In Level, Gate, Feedback, In Filter, In Limiter, In Delay, Matrix, Signal, Out Level, Out Filter, Out Limiter, Preset, Settings, Security etc.
This DSP has below features:
● It suit for Win 7 Win10 and MAC system;
● ADSP-21488 400Mhz floating-point DSP
● Dynamic range 110dBu
● Input 16 PEQs and Output 16 PEQs
● Time-Delay CH1-4 : 218ms, CH5-8 : 168ms
● Two 100M Ethernet interfaces
● PC Software Automatic Discovery Processor
● 32 system presets
● Fast copy of channel parameters
● Upgrade DSP and ARM firmware through ethernet
● Any Module Function Parameter is Hidden and Read - Only
● Customize your Brand on DSP Software easily.
|
