Home > Digital Amplifier > SR Amplifier > SR2-4500 Dsp Subwoofer Stereo Home Cinema Dj Bass Amplifier

1/1

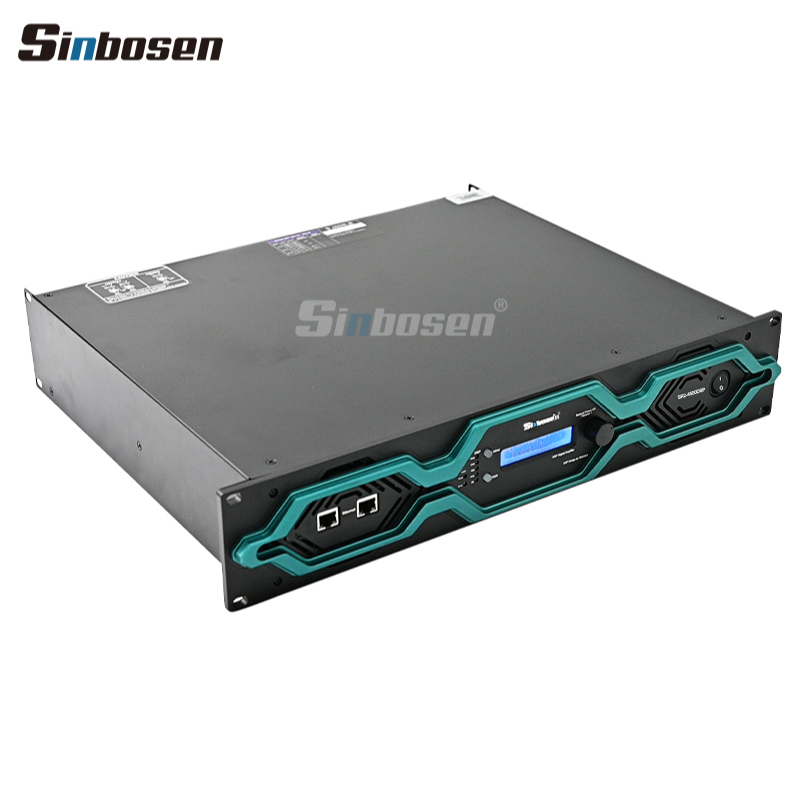

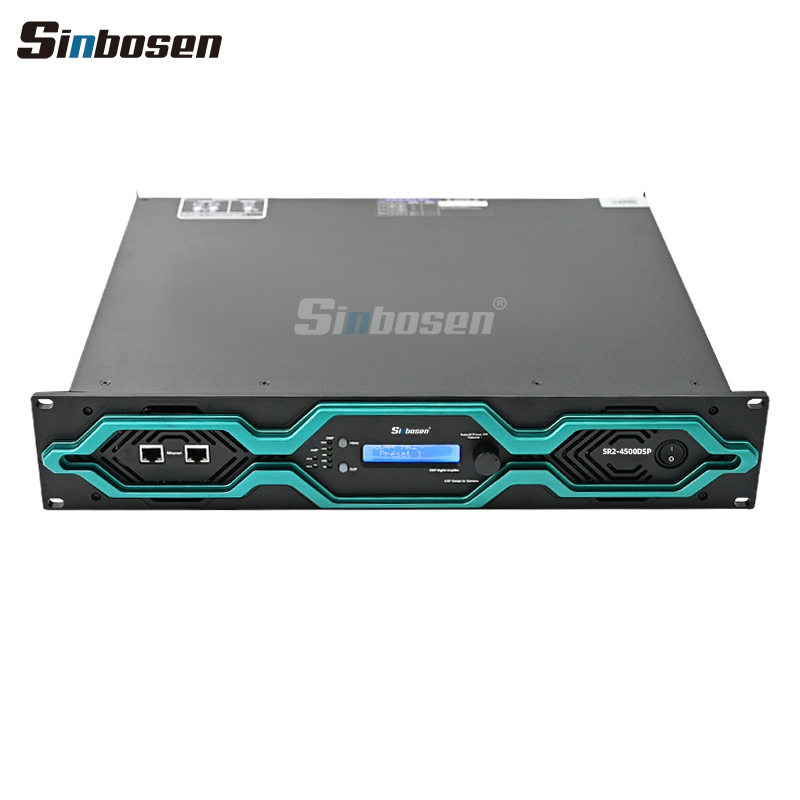

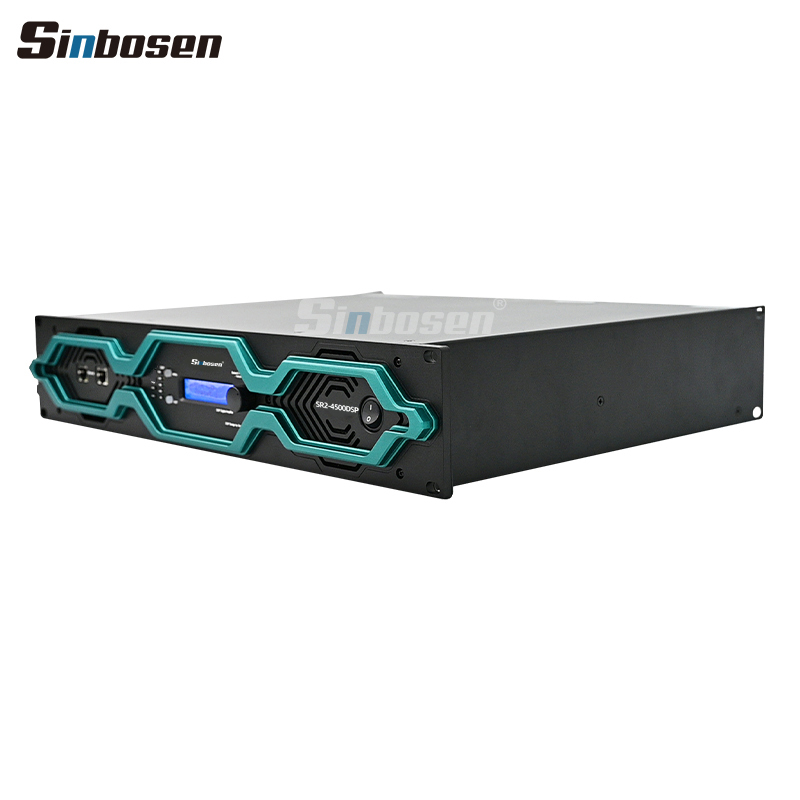

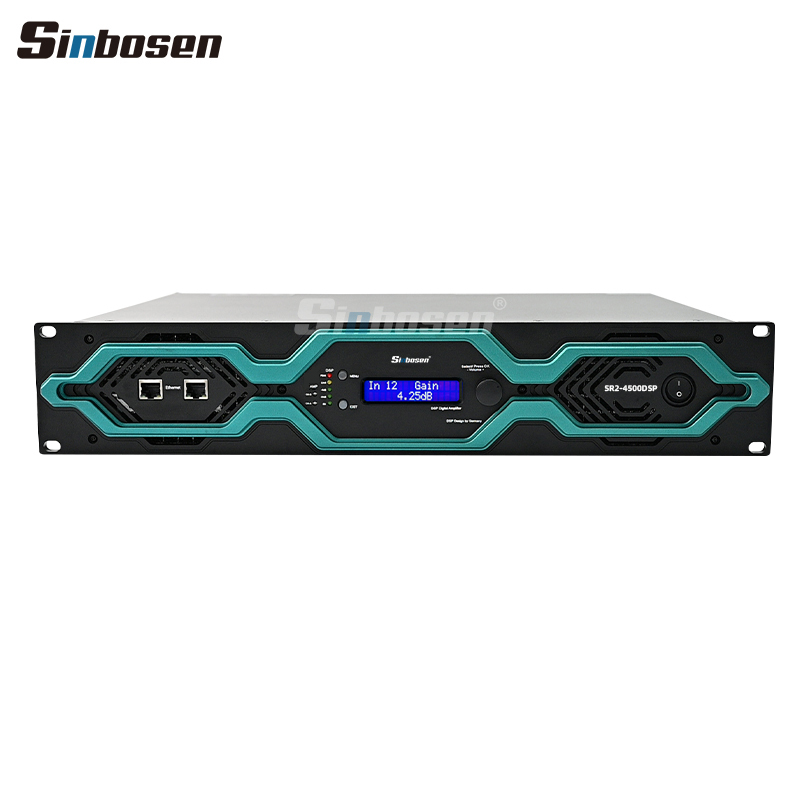

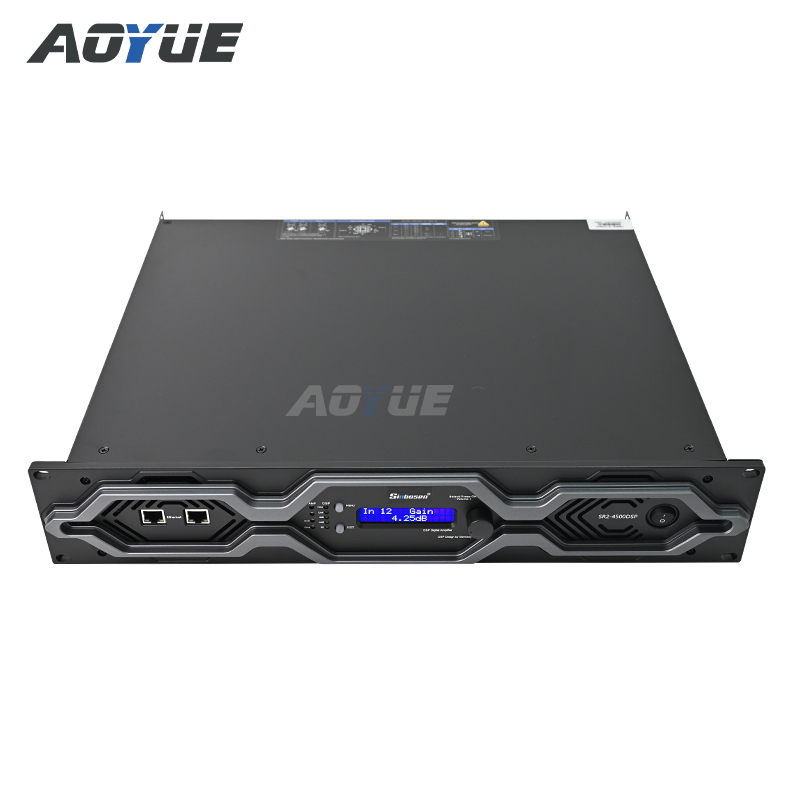

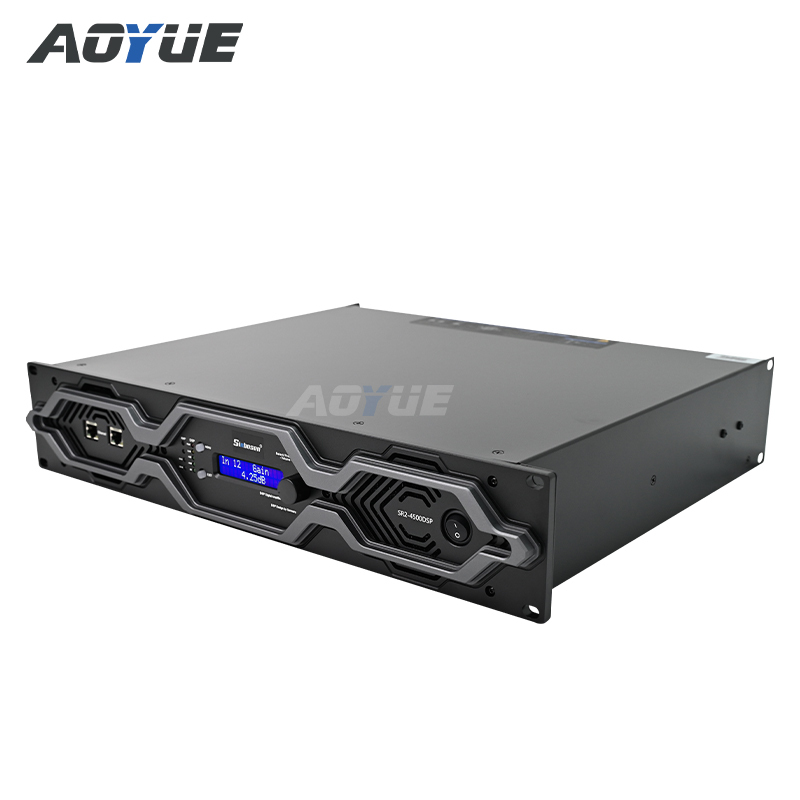

SR2-4500 Dsp Subwoofer Stereo Home Cinema Dj Bass Amplifier

Name: SR2-4500 Dsp Subwoofer Stereo Home Cinema Dj Bass Amplifier
Brand: Sinbosenaudio
SKU: SR2-4500 DSP
Price: 915 USD
Availability: InStock

0.0 (0)

0 Sold

$915.00

Output Power:
2 × 4500W/8Ω (RMS)
2 × 8000W/4Ω (RMS)
2 × 7000W/2Ω (RMS)
2 × 8500W/2Ω (20ms burst)

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Model

SR4-3200 DSP

SR2-4500 DSP

SR4-1800 DSP

Output Power

4 × 3200W / 8Ω (RMS)
4 × 5500W / 4Ω (RMS)
4 × 6000W / 2Ω (RMS)
4 × 7000W / 2Ω (20ms burst)

2 × 4500W/8Ω (RMS)
2 × 8000W/4Ω (RMS)
2 × 7000W/2Ω (RMS)
2 × 8500W/2Ω (20ms burst)

4 × 1800W/8Ω (RMS)
4 × 3000W/4Ω (RMS)
4 × 3800W/2Ω (RMS)
4 × 5600W/2Ω (20ms burst)

Frequency Response:

20Hz–20kHz, +0/-1dB

Total Harmonic Distortion (THD):

<0.5%, 20Hz–20kHz

Intermodulation Distortion (IMD):

<0.05%

Slew Rate:

50 V/µs @ 8Ω

Damping Factor:

>1000 @ 20–200 Hz

Signal-to-Noise Ratio (SNR):

>110dB

Gain Selection:

32dB / 35dB / 38dB / 41dB

Chassis

2U Chassis

Feature

– Deeper bass, stronger impact, and better sound quality.	– Reliable 2Ω low-impedance performance.
– Patented amplifier technology for enhanced reliability.	– Wide 100–240V operating voltage.
– Ideal for line arrays, cinemas, bars, stadiums, and home theaters.	– Energy-saving and cost-efficient.

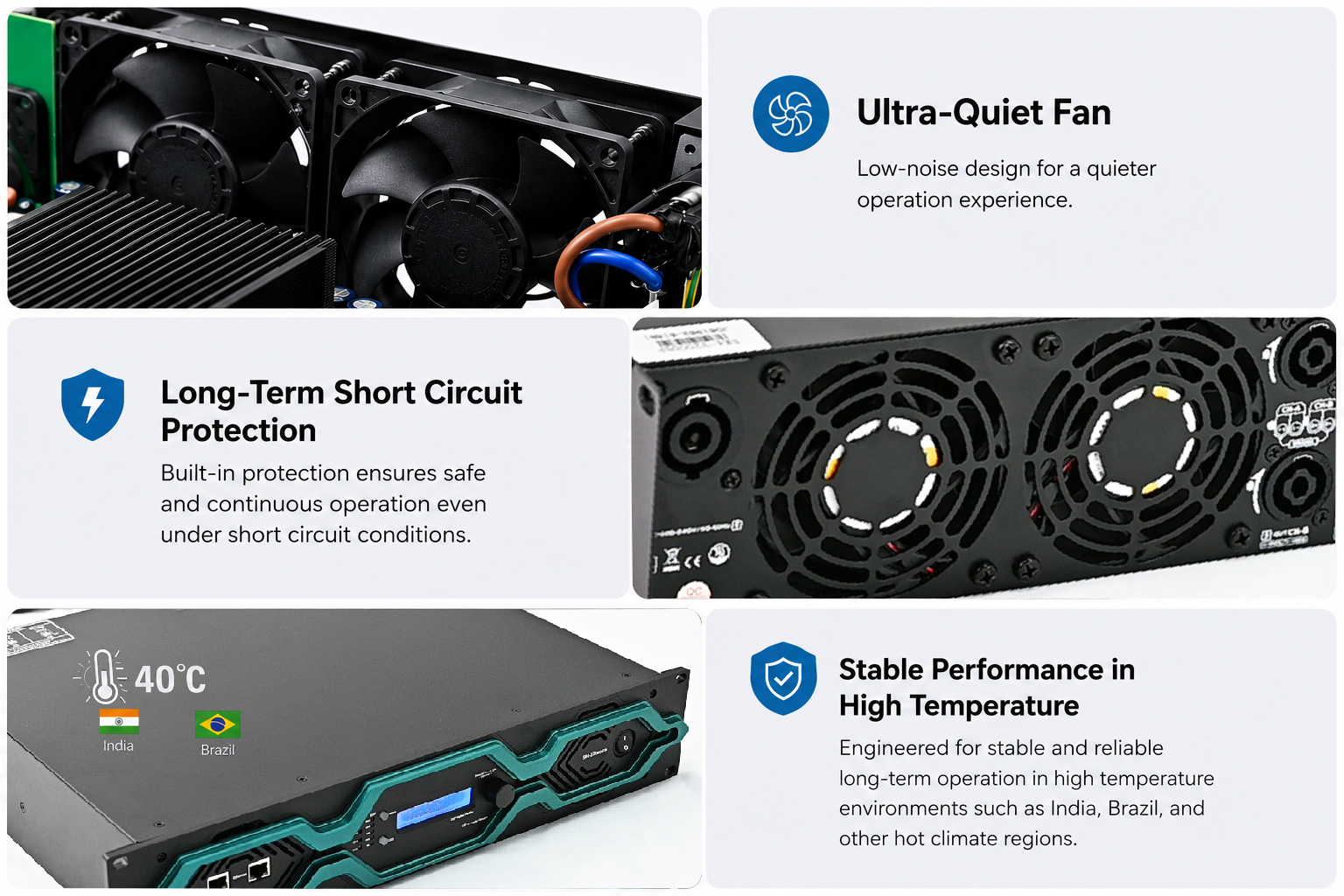

– High efficiency, low heat, and low distortion.	– Strict quality and reliability testing.
– Ultra-quiet cooling with short-circuit protection.	– Detachable 32A PowerCON cable included.

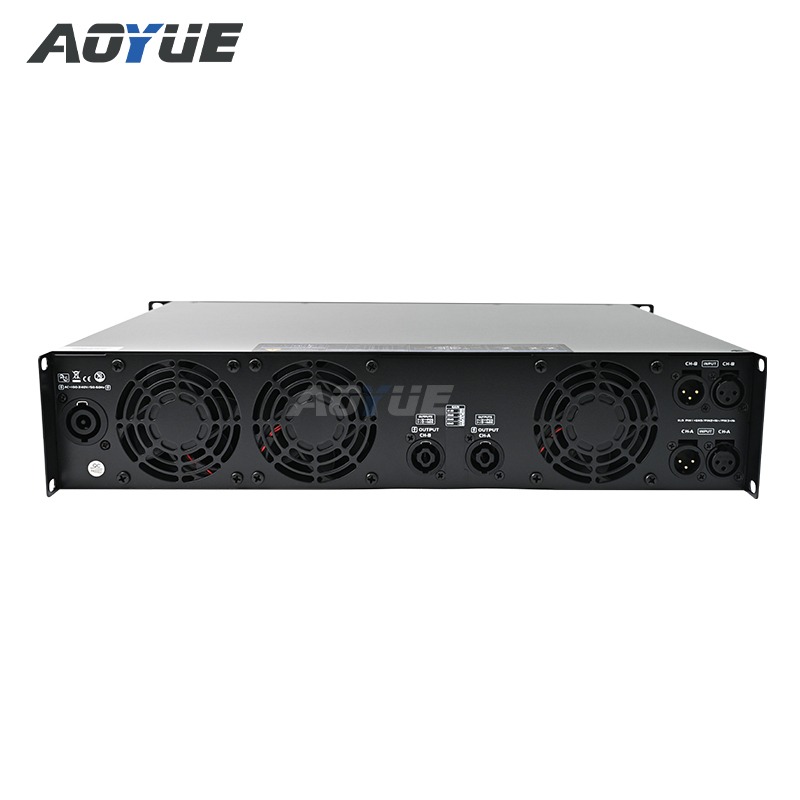

– Stable operation in high-temperature environments.	– 2 × NL4 genuine Neutrik connectors.
– Modular design for easy maintenance.	– ALLDSP ALLControl DSP from Germany

ALLDSP ALLControl
The new D series digital amplifier also has the option to add a DSP function, Our D series DSP amplifier uses an ALLDSP system from Germany. It is suited for Windows, Mac and ios systems.
The application for iPad or iPhone can be downloaded and installed from the Apple Store.
App Name: ALLControl, Remind you it is Paid-for Software.（The software Password is Develo_p）

For the Remote Operation Software (Windows and Mac) and Manual, Please check the Download link or contact us!
Note that for a Windows computer, there are separate applications for Windows 32-bit and 64-bit.

Parameters of DSP Module
Digital signal processor	64 bit multimode, 4 in and 4 out
AD converter	120db Dynamic Range
DA converter	110db Dynamic Range
Storage preset	100
Signal input	Analog/optional Dante
Delay range	0-10ms
Equalizer	5-segment grouping equalization, 10 segment input/output equalization
Frequency division filter	Linkwitz Reiley, Belsel, Butterworth
FIR filter	4x144taps

Attention: You cannot connect the unit to the network through the USB or Ethernet at the same time. You can only control the unit from one platform at the same time if you switch from one platform to another, you MUST shut down the control software at the previous platform first.Local connectivity of the device to the control computer from a front-panel USB connector is also possible to download initial settings or as a fallback in case of network failure.

►Unit Window: Main Panel
Unit window shows the unit window from which all setup screens and options can be reached.Clicking the exit cross will close the software but leave the network Control program running.

►Input Channel Settings Screen

Clicking on an Input channel number in the Unit window will bring up the input channel settings screen see Figure above. In this screen, individual input channels can be equalized and/or filtered.

Settings screen:

●Filtering and EQ
●Input channel transfer function curve
●Screen expansion and legends
●Input Gain, Mute
●Delay, limiter, compressor
●RMS compressor

●Screen expansion and legends
On the left-hand side of the graphical screen are four icons to help precise settings. The top Arrow icon expands the graphical screen to the size of the window.Clicking this icon again from the expanded screen expands it to the full display size. In either of the expanded settings, clicking the X-icon at the top left will collapse the graphical area to the default setting.

The T(ext) icon will place the frequency, Q and gain values of each EQ and filter setting in the graphical screen.

For very accurate settings of EQ or filtering you can click the Looking Glass icon.

●Delay, limiter, compressor
Settings for channel delay, limiter (-48 to +24 dBu) and Limiter release rate (10 to 100 dB/s) settings.Plus a button to enter the rms compressor menus.Channel delay can be set in a variety of distance or time units from the drop-down list.

●Compressor settings window
Clicking on the compressor button brings up the compressor menu.
In the compressor menu you can set the parameters of the rms compressor.You can set the threshold, attack, hold, and release time, the compression ratio and the make-up gain.Next to the controls is a VU meter that also displays the gain reduction (GR). Be sure to use the ‘Back’ button to return to the output menu.

►Crossover Settings Window

When you click X-over in the left unit window function list, most of the screen is dedicated to the controls and indicators for setting up the cross over filters as shown in Figure.

Settings screen:

●Graphical control
●Filter type
●Gain
●Delay
●Link
●Mute, Phase Invert

►Output Channel Settings Screen

As shown in the picture above, faders are shown for each of the input channels. This will allow mixing each of the input signals to each individual Output channel. Even if Input channels are set to Linked in the Unit window, it is still possible here to mix individual Input channels to an Output channel in any desired ratio. Level setting are shown numerically below each fader. The available range is from -48 dB to 0 dB. As in other screen, double clicking a fader resets it to default.

A complete control screen is available for each Output channel. The graphical area reflects the Crossover settings for the channel in addition to any equalization settings set up in this screen, and is very similar to the available settings in the individual Input channel screens.The status of an element is always reflected in the blue on/off button next to each element.

Settings screen:

●Relationship between Input- and Output settings
●Output filtering and EQ
●Output channel transfer curve
●Delay, limiter, compressor
●RMS compressor
●Change / adjusting Values
