| 1U Digital Amplifier | K4-450 | K4-600 | K4-800 | K4-1000 | K4-1400 | K4-1700 |
|---|---|---|---|---|---|---|
| Output Power 1 KHz, <0.05%THD | ||||||
| 8Ω/Stereo Output | 4CH X 450W | 4CH X 600W | 4CH X 800W | 4CH X 1000W | 4CH X 1400W | 4CH X 1700W |
| 4Ω/Stereo Output | 4CH X 700W | 4CH X 900W | 4CH X1200W | 4CH X 1400W | 4CH X 2200W | 4CH X 2800W |
| 8Ω/Bridge Output | / | 2CH X 1800W | 2CH X 2400W | 2CH X 2800W | 2CH X 4500W | 2CH X 5000W |
| 4Ω/Bridge Output | / | 2CH X 2200W | 2CH X 3100W | 2CH X 3500W | 2CH X 5500W | 2CH X 6100W |
| Class | Class D Power Amplifier | |||||
| THD (20Hz-20kHz for 1W) | <0.1% | |||||
| THD (1kHz and 1 dB below clipping) | <0.05 | |||||
| DSP Processor | NO | |||||
| Signal Noise Ration | >106dB | |||||
| Frequency Response(+/-0.1dB) | 10Hz-34kHz | |||||
| Damping coefficient | >600 | |||||
| Impedance(balanced/unbalanced) | 20KQ/10KQ | |||||
| Gain (optional) | 0.775V/1V/32dB | |||||

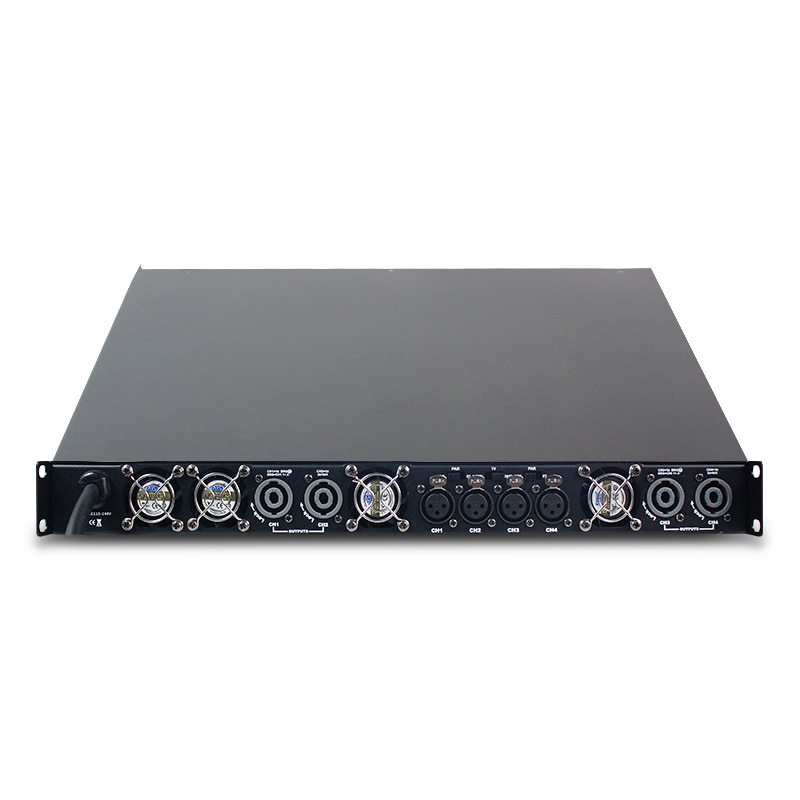

| Output socket | Spe akon Connectors | |||||
| Input socket | Combo XLR type, 3pin | |||||
| Link socket | XLR type,3pin male(NEUTRIK) | |||||
| Protection | Short circuit, open dircuit, thermal, overload,DC,super audio protection | |||||
| Power Requirement | Single Voltage 110V / 220V |
90-265V~50Hz(PFC) | ||||

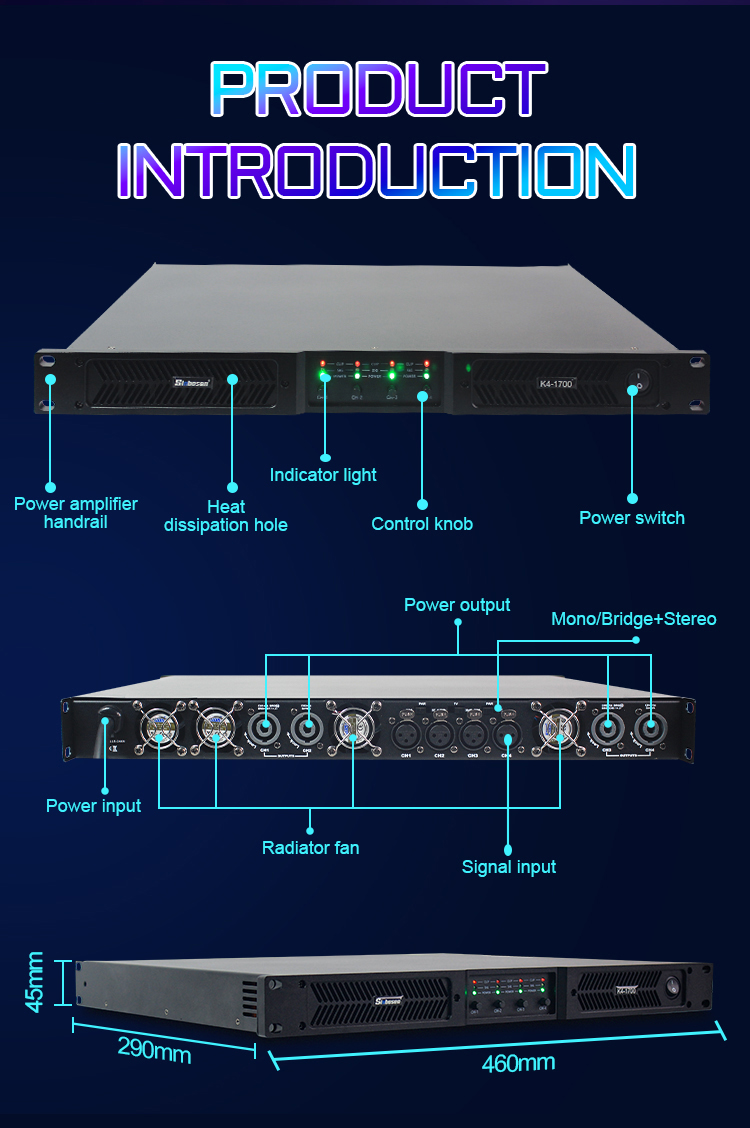

| Size(WxHxD) | 483x429x44mm | |||||
| Weight(net) | 5KG | 7KG | 7KG | 7KG | 9.8KG | 9.8Kg |
Important Notice
For MF/HF speakers, the K4-1700 power amplifier should be 1.5 times your speaker-rated power.
K4-1700 is not recommended for working at 2ohms. Also not recommended for subwoofer.

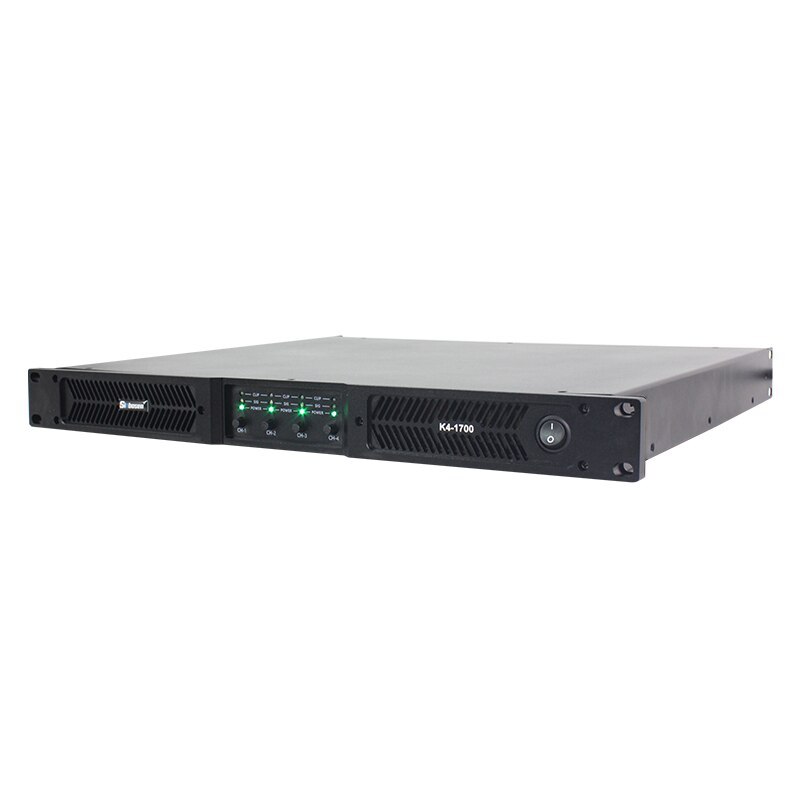

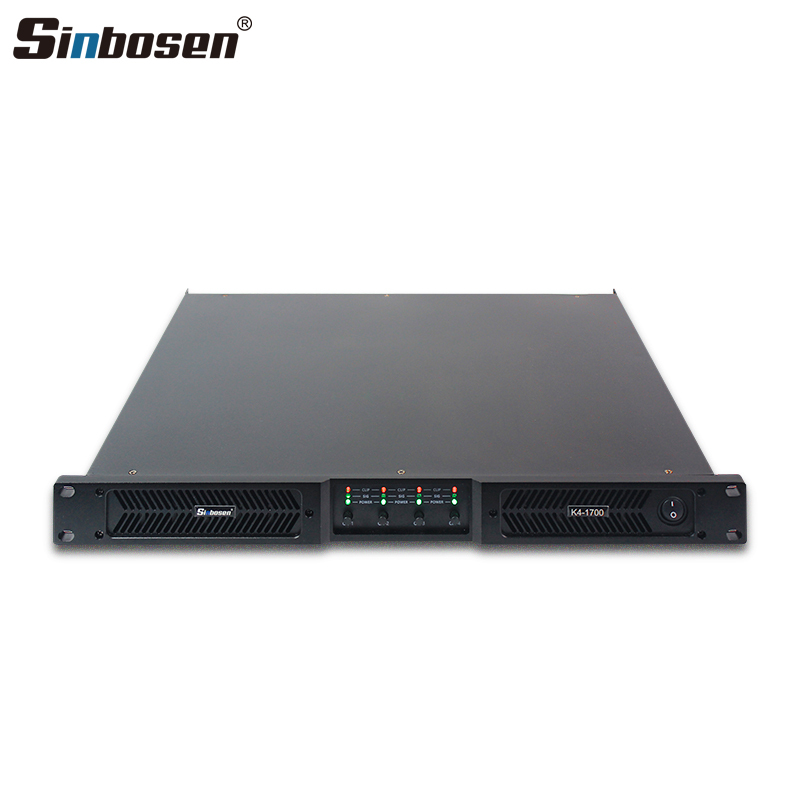

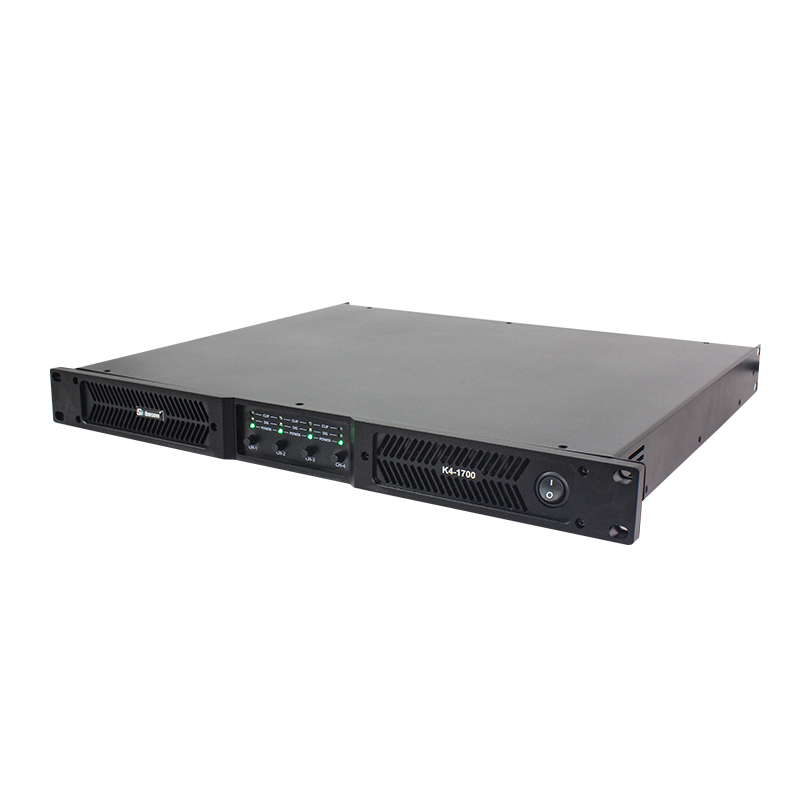

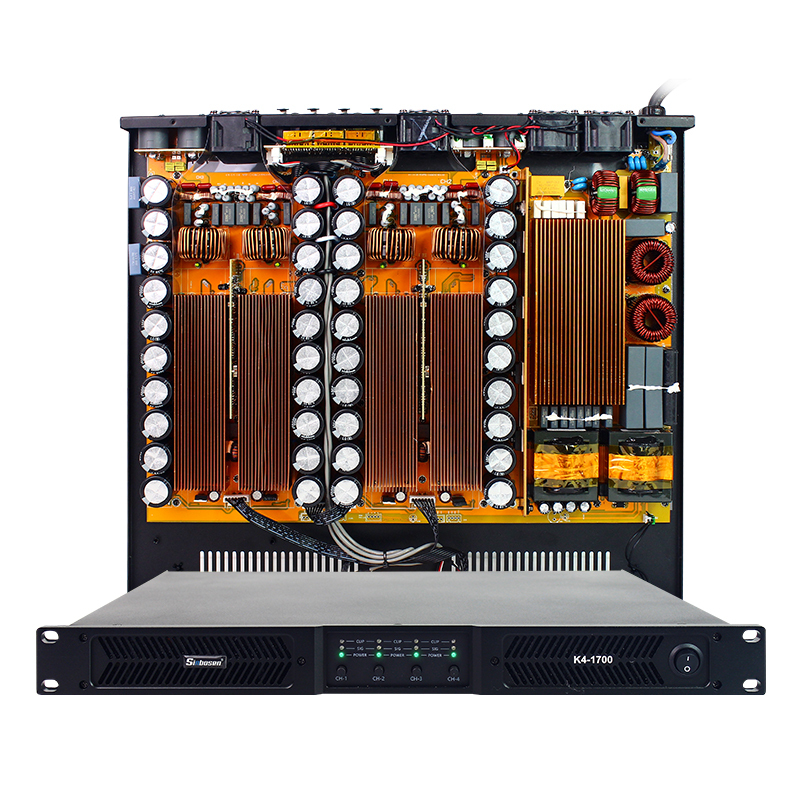

K4-1700 Feature:
1. Use the Class D power amplifier module. Unique peak clipping limiter and ripple reduction.
2. The perfect protection system effectively reduces the losses caused by improper use.
3. The perfect circuit design makes the bass strong and powerful, and the mid and high frequencies are transparent and clear.
4. 1U design, its lightweight and very small space occupation rate.
5. It is widely used in large and medium-sized bars, banquet halls, and outdoor performances.
6. Create SUPER sound quality, good for dual 12"/15" line array / Pa speaker
7. The bridge-mode operation for Touring Applications
Small size, lightweight, and easy to install.

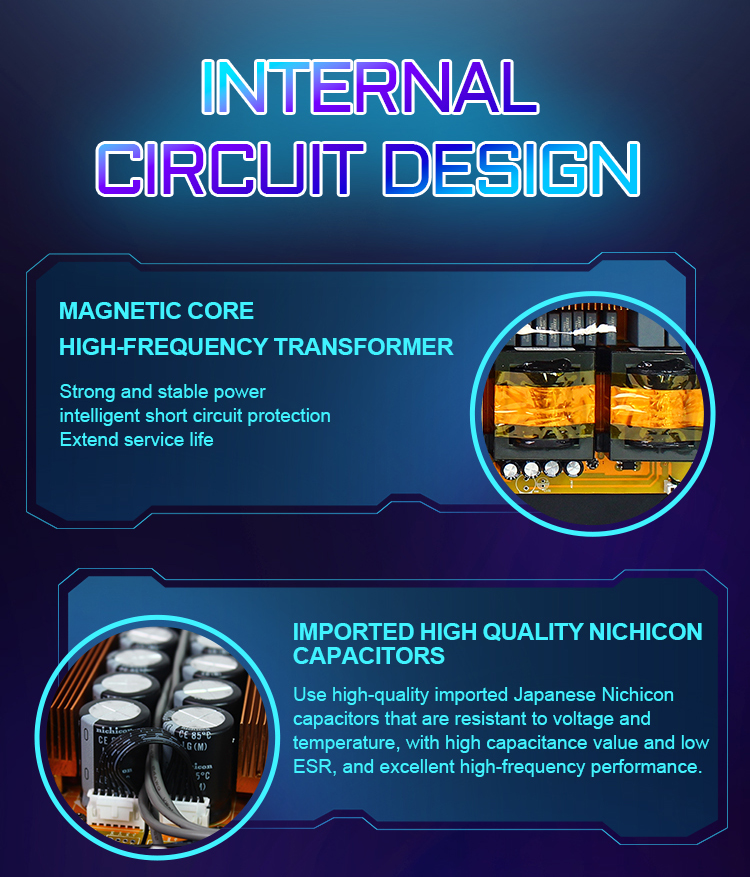

The circuit uses a Class D power amplifier module, a reliable and efficient R-SMPS stabilized power supply system, which has extremely high efficiency and controllability, and also has extremely high power density, which can adjust the current waveform according to the AC voltage waveform.
Wide voltage operation, adapts to the global scope, can carry a higher power.
          \  |
