Front panel

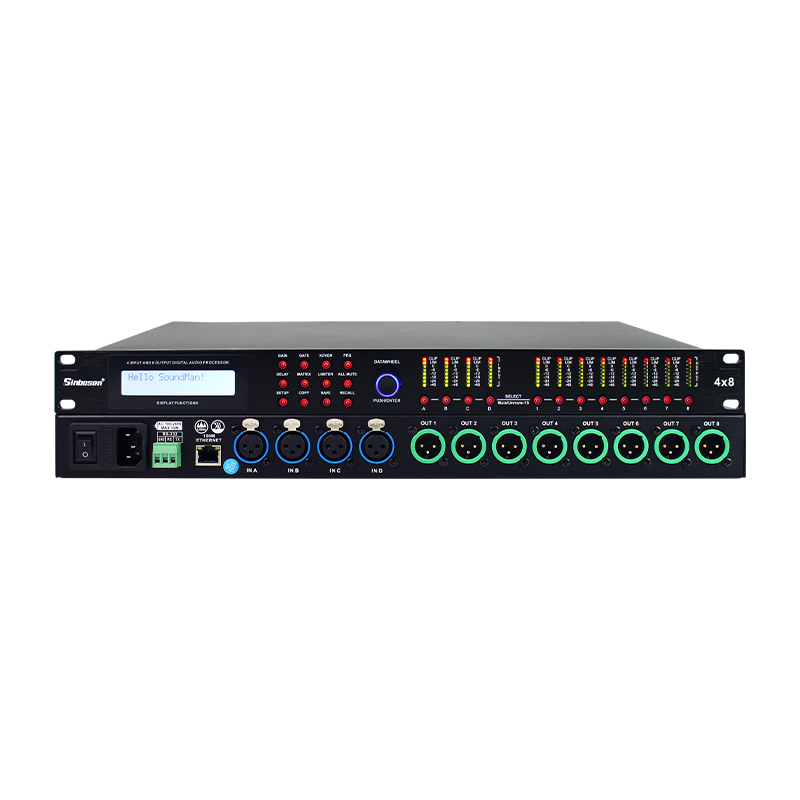

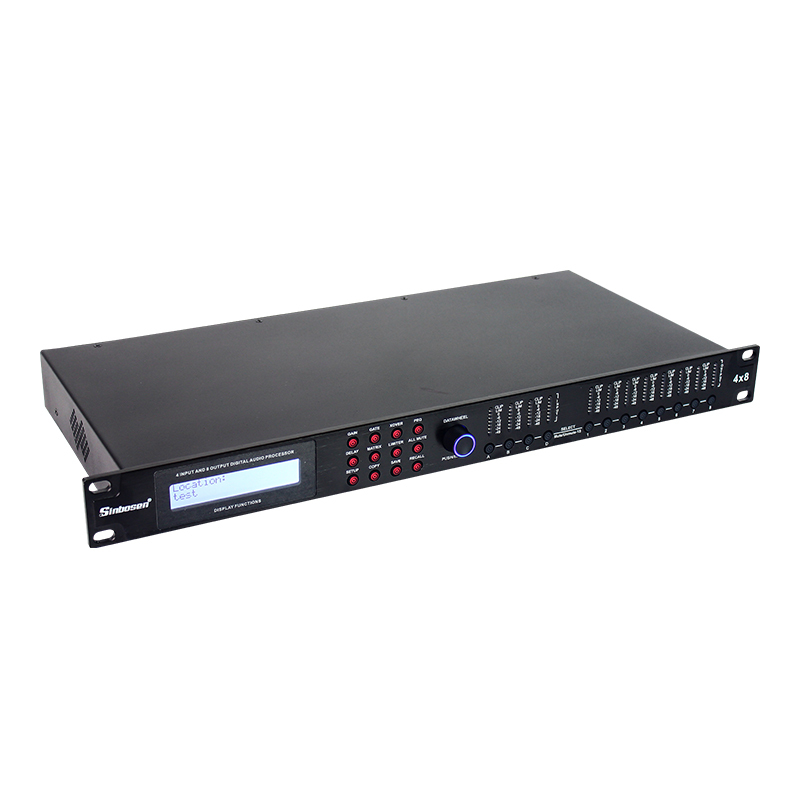

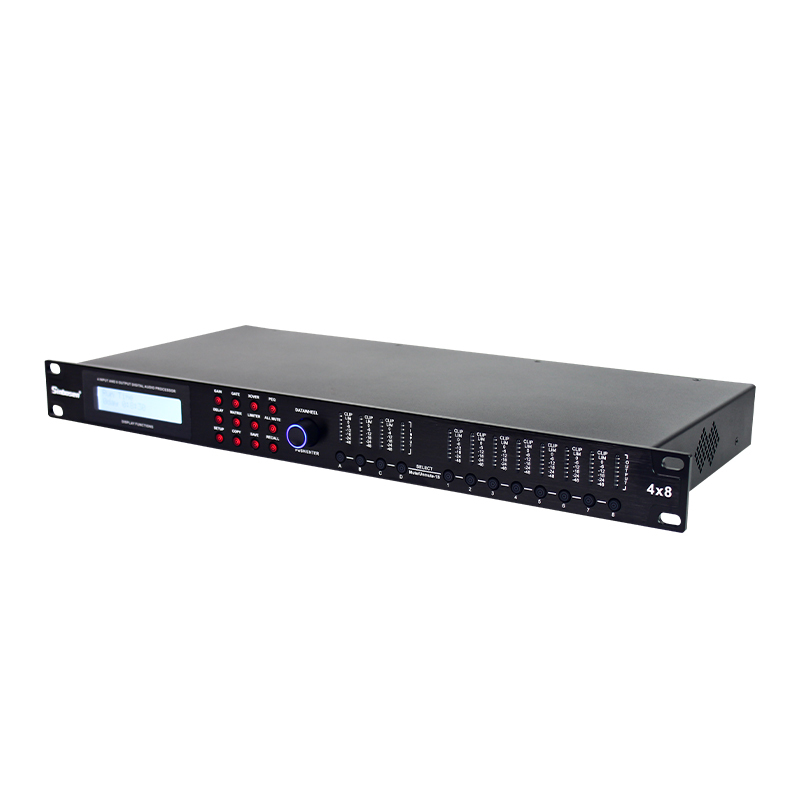

| ①LCD Screen ARM version Control IP address Location description Custom properties Electric running time ②Audio Function Gain, Gate, Xover, PEQ, Delay, Matrix, Limiter, All Mute, Setup, Copy, Save, Recall ③DataWheel Data alignment ④Input Level Indicator Light Above is input signal indicator light. When the input signal exceeds - 40dBu, the signal indicator light is illuminated, indicating that the audio signal is input from the corresponding channel. Below is auxiliary button and mute switch. ⑤Output Level Indicator Light Above is output signal indicator light. When the output signal exceeds -40dBu, the signal indicator light is illuminated, indicating that the audio signal is output from the corresponding channel. Below is auxiliary button and mute switch. |
Rear panel
|

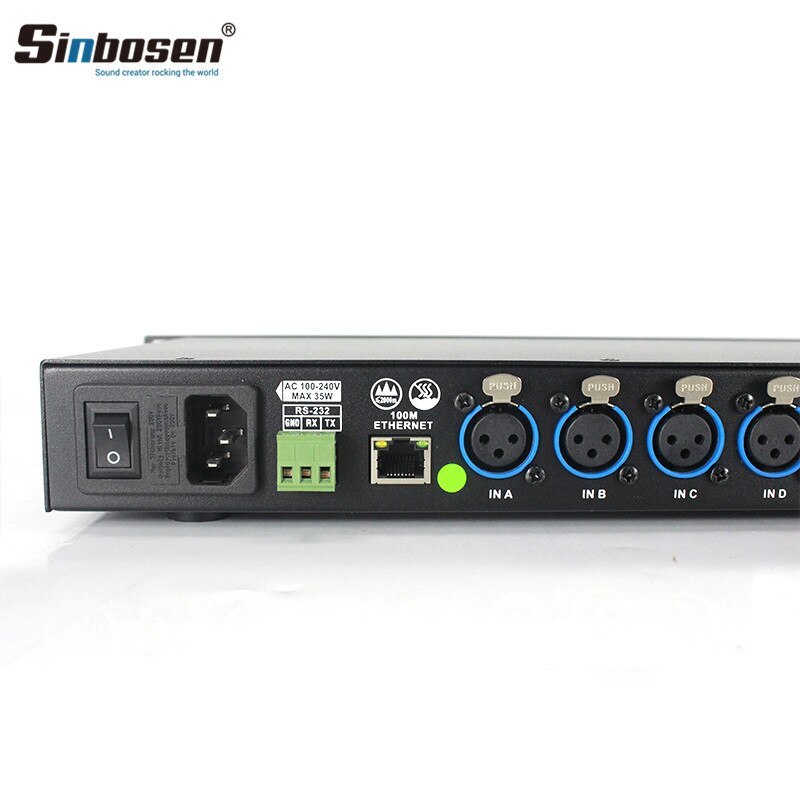

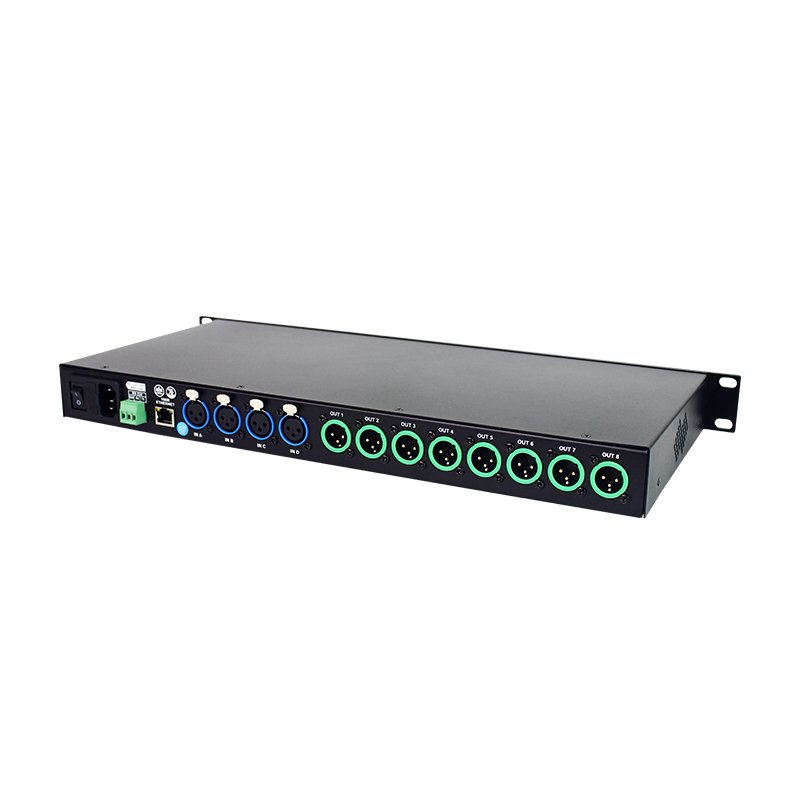

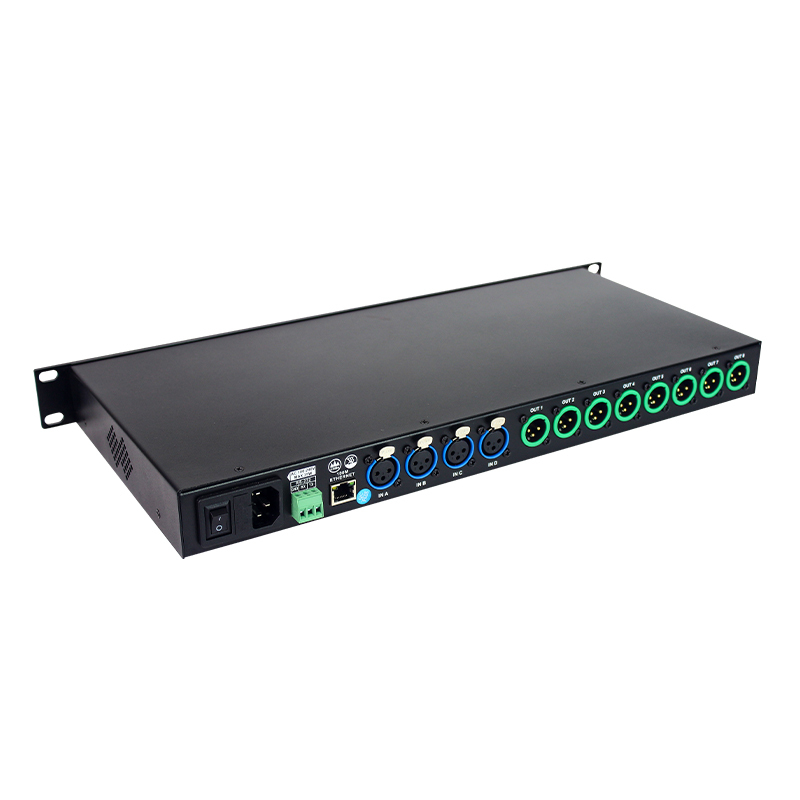

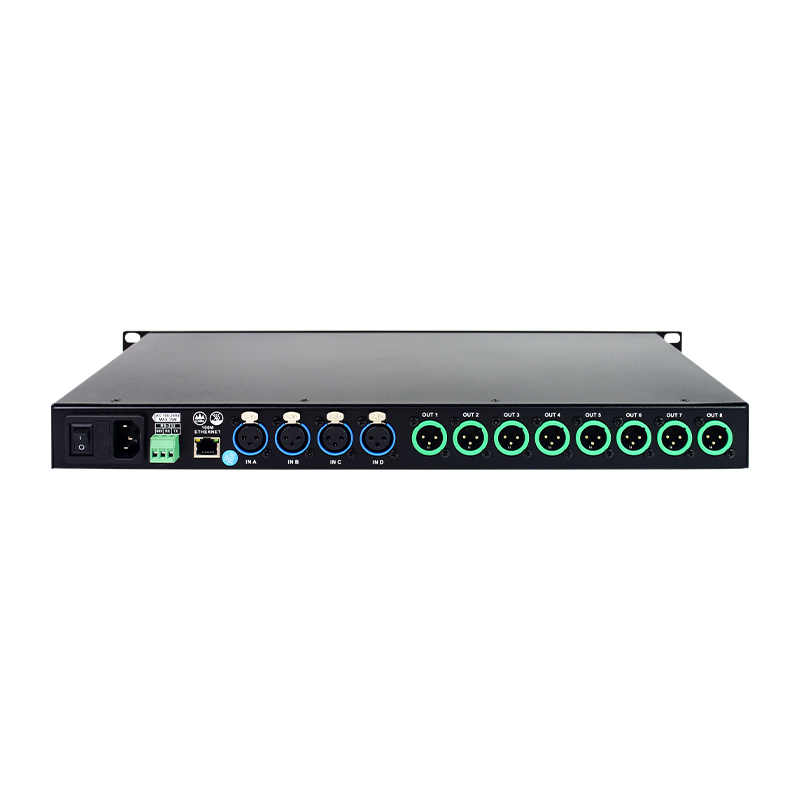

①Power Switch ②AC In Support 100V~240V AC voltage, please use the standard power cable, use power outlet with grounding. ③RS-232 Interface Use to connect the third - party central control system. ④Ethernet Interface Connect to switch using standard 5 Ethernet networks, also can connect directly to laptop. ⑤Audio Input Interface: Channel 1～4 Standard XLRF input, balance audio input interface. ⑥Audio Output Interface: Channel 1～8 Standard XLRM output, balanced audio output interface. |
Software Running Environment
Operating system request: windows XP、Windows7 32Bit 、windows7 64Bit Storage space occupation: 50Mb Network environment: 100m LAN or wireless router
Multifunction
GAIN , GATE , XOVER , PEQ DELAY , MATRIX , LIMITER , ALL MUTE SETUP , COPY , SAVE , RECALL
