  • Description


1U Digital Amplifier K4-450 K4-600 K4-800 K4-1000 K4-1400 K4-1700
Output Power 1 KHz, <0.05%THD
8Ω/Stereo Output 4CH X 450W 4CH X 600W 4CH X 800W 4CH X 1000W 4CH X 1400W 4CH X 1700W
4Ω/Stereo Output 4CH X 700W 4CH X 900W 4CH X1200W 4CH X 1400W 4CH X 2200W 4CH X 2800W
8Ω/Bridge Output / 2CH X 1800W 2CH X 2400W 2CH X 2800W 2CH X 4500W 2CH X 5000W
4Ω/Bridge Output / 2CH X 2200W 2CH X 3100W 2CH X 3500W 2CH X 5500W 2CH X 6100W
Class Class D Power Amplifier
THD (20Hz-20kHz for 1W) <0.1%
THD (1kHz and 1 dB below clipping) <0.05
DSP Processor NO
Signal Noise Ration >106dB
Frequency Response(+/-0.1dB) 10Hz-34kHz
Damping coefficient >600
Impedance(balanced/unbalanced) 20KQ/10KQ
Gain (optional) 0.775V/1V/32dB
Output socket Spe akon Connectors
Input socket Combo XLR type, 3pin
Link socket XLR type,3pin male(NEUTRIK)
Protection  Short circuit, open dircuit, thermal, overload,DC,super audio protection
Power Requirement Single Voltage
110V / 220V
90-265V~50Hz(PFC)
Size(WxHxD) 483x429x44mm
Weight(net) 8KG 8KG 9KG 9KG 10.5KG 11Kg


Important Notice

For MF/HF speakers, the K4-1700 power amplifier should be 1.5 times your speaker-rated power.
K4-1700 is not recommended for working at 2ohms. Also not recommended for subwoofer.



K4-1700 Feature:

1. Use the Class D power amplifier module. Unique peak clipping limiter and ripple reduction.
2. The perfect protection system effectively reduces the losses caused by improper use.
3. The perfect circuit design makes the bass strong and powerful, and the mid and high frequencies are transparent and clear.
4. 1U design, its lightweight and very small space occupation rate.
5. It is widely used in large and medium-sized bars, banquet halls, and outdoor performances.
6. Create SUPER sound quality, good for dual 12"/15" line array / Pa speaker
7. The bridge-mode operation for Touring Applications



Small size, lightweight, and easy to install.

The circuit uses a Class D power amplifier module, a reliable and efficient R-SMPS stabilized power supply system, which has extremely high efficiency and controllability, and also has extremely high power density, which can adjust the current waveform according to the AC voltage waveform.

Wide voltage operation, adapts to the global scope, can carry a higher power.

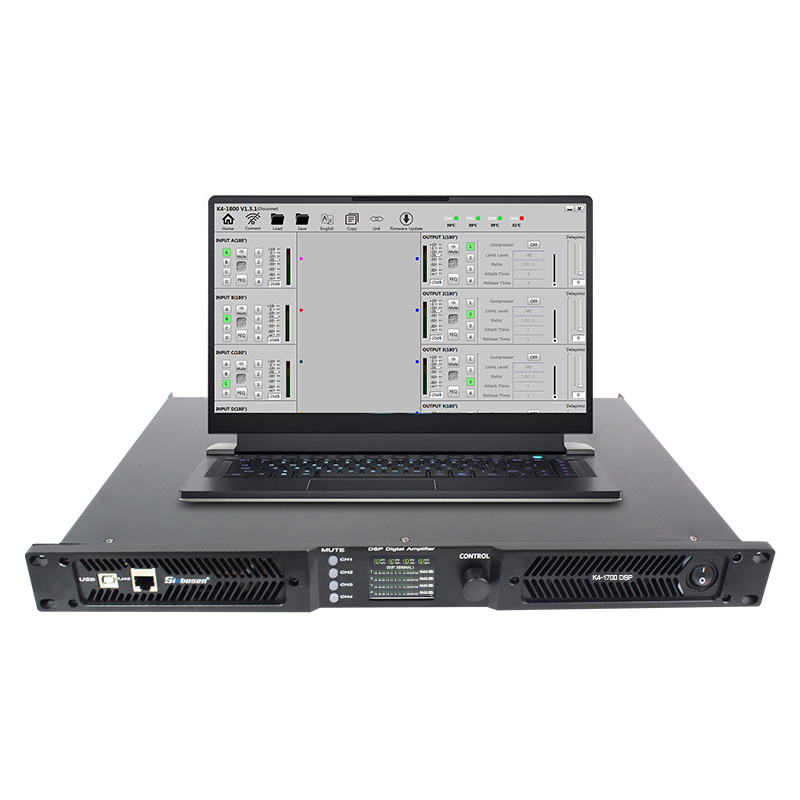

Software Interface
