DS-10Q Class TD Power Amplifier Specification
|
|
|
8Ω Stereo Power
|
1350W * 4CH
|
|
4Ω Stereo Power
|
2100W * 4CH
|
|
8Ω Bridged Power
|
4200W * 2CH
|
|
4Ω Bridged Power
|
5000W * 2CH
|
|
Frequency Response(+o/-0.3dB,1W/8Ω)
|
20 Hz - 34 kHz
|
|
THD 20 Hz - 20 kHz for 1 W
|
<0.1%
|
|
Signal-to-Noise Ratio
|
>112 dBA
|
|
Channel separation (Crosstalk) at 1 kHz
|
>70 dB
|
|
Input Connectors (per channel)
|
3-pin XLR, electronically balanced
|
|
Output Connectors (per channel)
|
Binding Posts 2-pole
|
|
Class
|
TD
|
|
RK Dual 8" line Array System 16+8 Hanging Combination Set wit.TourClass Protection
|
ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input
|
|
Operating voltage
|
220 V / 110 V nominal ； 180-240 V / 90-130 V selectable
|
|
Voltage Gain(dB)
|
23, 26, 29, 32, 35, 38, 41, 44 dB selectable
|
|
Input impedance
|
20 kOhm
|
|
Level adjustment (per ch.)
|
Front-panel potentiometer, 31 position detented from -inf to 0 dB
|
 |
FP10000Q PROFESSIONAL AUDIO AMPLIFIER FEATURE:
-Good for dual 15 inch Speaker ,double 10/12 inch line array -Create SUPER sound quality. -Separately controllable on Gain. -Scalable Voltage Peak Limiter (VPL). -Bridge-mode operation for Touring Applications. -Comprehensive protection scheme. -Use Original capacitor 3300uf 200V. -Use Original power output transistor and XLR. |
|
Unique Cooling System:
|
Capacitor Upgrade:p
|

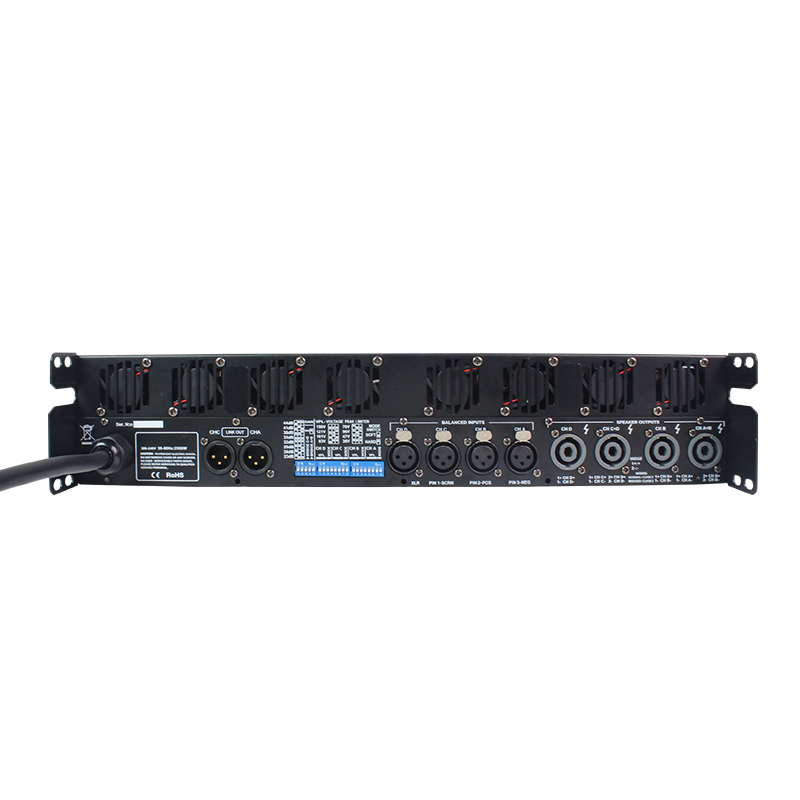

We upgraded the cooling system and added 8 rear fans, which enhanced the cooling system capability of the amplifier. Quiet and efficient, fast heat dissipation. |
ower amplifier amplifier

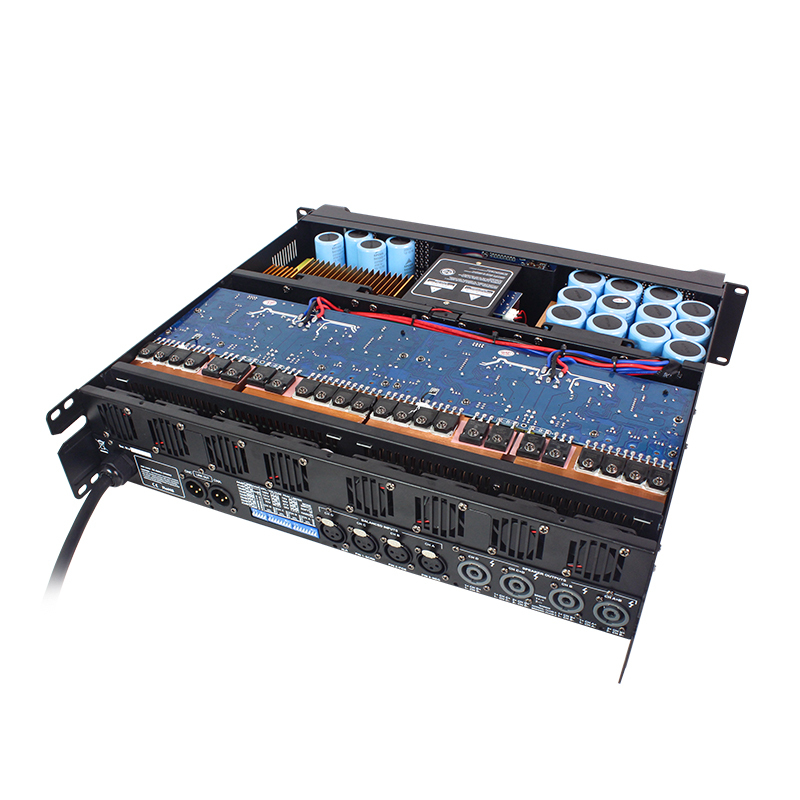

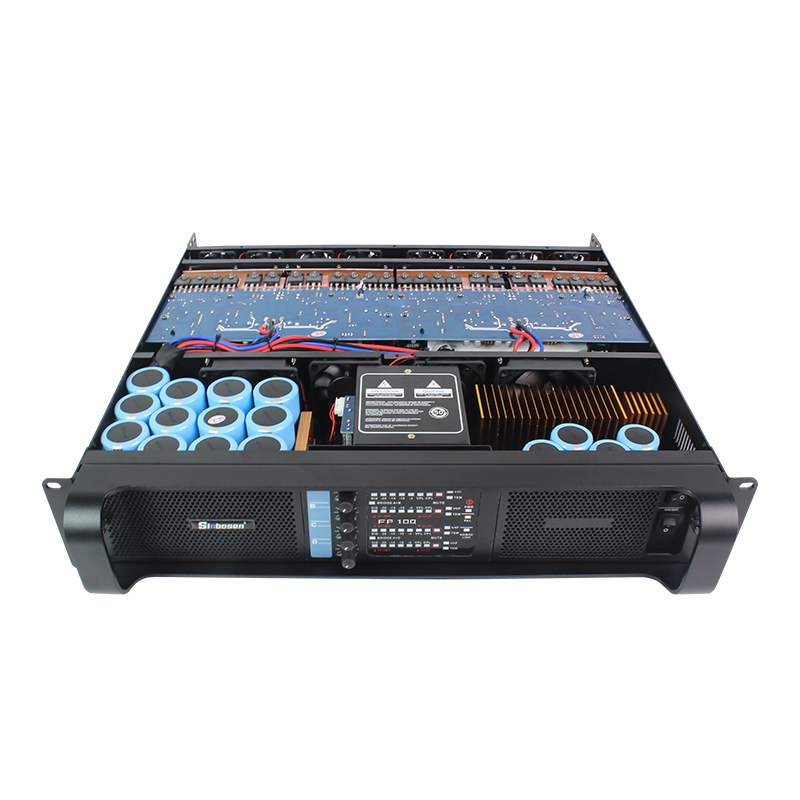

In the old version we used 10 pcs 3300UF/200V capacitor +4 pcs 2200uf/200V capacitors, and now the new version is adding 2 pcs 3300uf/200V. Totally add more 6600UF capacitance. The amplifier power supply board is better than before, it will make sound quality more loud and powerful. Product Description |
