1. |
48kHz sampling frequency DSP processor, 24-bit A/D and D/A conversion; 4 in 4 out DSP module. |
2. |
Input modes can be selected as analog input, AES digital signal input, (DANTE function is selectable, costs more than 100 USD), allowing for simultaneous input of different signals. Automatic switching configuration is available, with the option to set signal priority levels. |
3. |
Output channel temperatures are displayed on the screen for easy monitoring of amplifier temperature status. |
4. |
Output amplifier protection indicator lights, with the PRO indicator light staying on in amplifier protection mode. |
5. |
Quick copy function; allows for copying of adjusted parameters to other channels. |
6. |
Signal generator configuration: white noise; pink noise; sine wave signal. |
7. |
FIR function configuration for 4 output channels;FIR fractional filtering: Taps can be selected within the range of 256 to 512, with optional attenuation and time window types; FIR parameters can be generated by the machine. itself, or imported from pre-generated FIR files from third-party applications. |
8. |
One-touch scan for USB devices, network devices; automatically connects upon device detection; Network can be multi-machine calibrated, with up to 250 devices online simultaneously. |
9. |

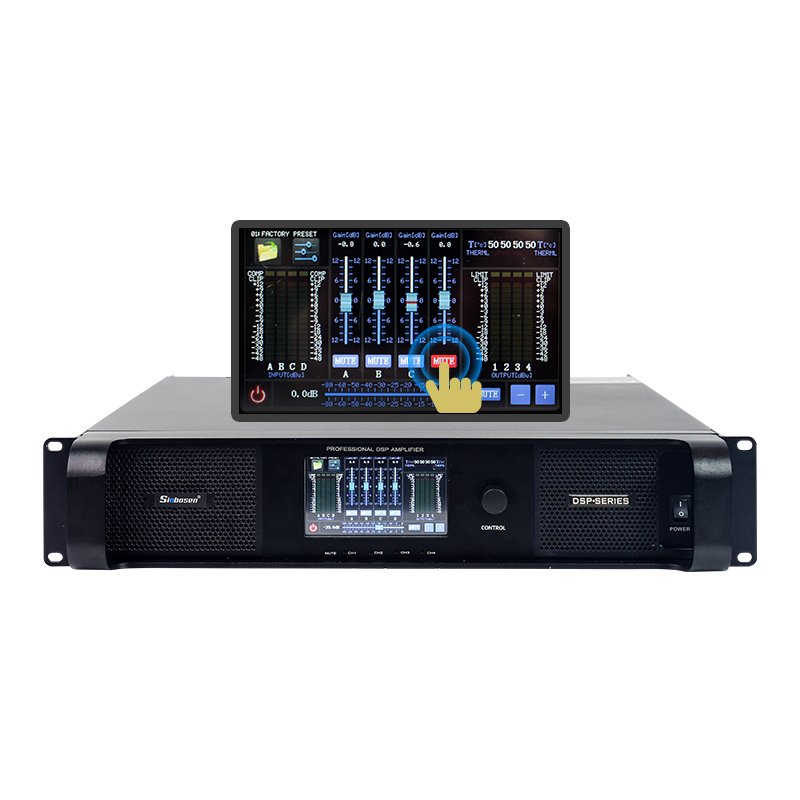

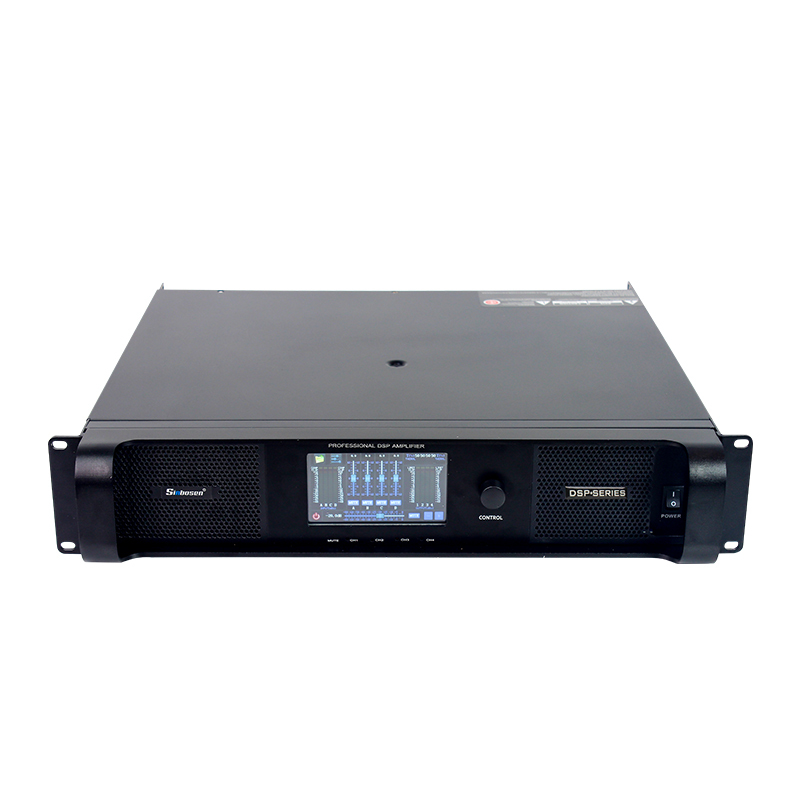

2U panel equipped with a 4.3-inch touchscreen, allowing for direct touch adjustment of parameters or connection to a computer for control via PC control software. |
10. |
Operation panel can store 30 user programs for quick and convenient access. |
11. |
Device can be locked via software or panel to prevent accidental operation. |
12. |
All 4 inputs feature 7 independent parametric equalizers, with adjustment range of -15dB to +15dB; equalizer modes can be selected as PEQ, LF, HP, ALLPASS; input configuration includes limiters, noise gates, delay, phase, high-pass, low-pass, input calibration, channel parameter copying, mute, and other functions. |
13. |
All 4 outputs feature 7 independent parametric equalizers, with gain adjustment range of -15dB to +15dB; equalizer modes can be selected as PEQ, LF, HF, ALLPASS; output configuration includes limiters, delay, phase, high-pass, low-pass, output calibration, channel parameters, mute, FIR, and other functions. |
